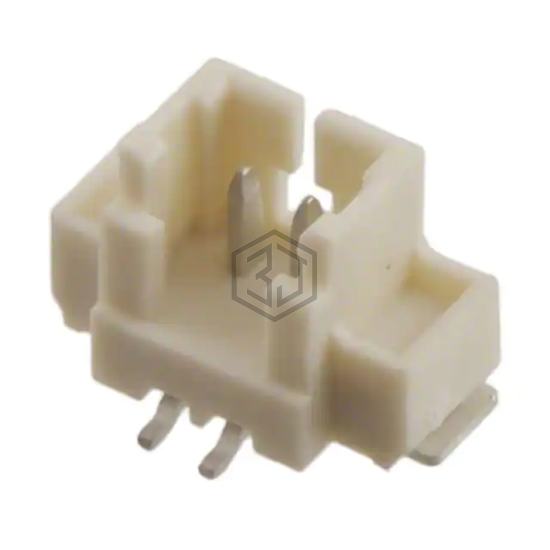

CONN HEADER SMD 2POS 1.25MM
653102124022 is a Rectangular Connectors - Headers, Male Pins manufactured by Würth Elektronik. CONN HEADER SMD 2POS 1.25MM. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage rating 125V, contact material Copper Alloy.
In Stock: 2,303
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.049" (1.25mm) |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Row Spacing - Mating | - |
| Number of Positions Loaded | All |
| Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Surface Mount |
| Termination | Solder |
| Fastening Type | Detent Lock |
| Contact Length - Mating | 0.085" (2.15mm) |
| Contact Length - Post | - |
| Overall Contact Length | - |
| Insulation Height | 0.187" (4.75mm) |
| Contact Shape | Rectangular |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin |
| Contact Material | Copper Alloy |
| Insulation Material | Polyamide (PA46), Nylon 4/6 |
| Features | Solder Retention |
| Operating Temperature | -40°C ~ 85°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Beige |
| Current Rating (Amps) | 1A |
| Voltage Rating | 125V |
