CONN HEADER VERT 20POS 1.27MM

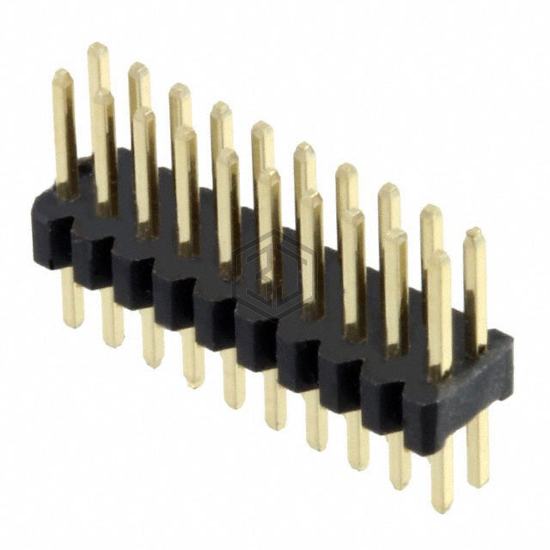

62202021121 is a Rectangular Connectors - Headers, Male Pins manufactured by Würth Elektronik. CONN HEADER VERT 20POS 1.27MM. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 125°C, voltage rating 50V, contact material Copper Alloy.
In Stock: 970
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.050" (1.27mm) |
| Number of Positions | 20 |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.050" (1.27mm) |
| Number of Positions Loaded | All |
| Style | Board to Board or Cable |
| Shrouding | Unshrouded |
| Mounting Type | Through Hole |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Length - Mating | 0.150" (3.81mm) |
| Contact Length - Post | 0.091" (2.30mm) |
| Overall Contact Length | 0.299" (7.60mm) |
| Insulation Height | 0.059" (1.50mm) |
| Contact Shape | Square |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | - |
| Contact Finish - Post | - |
| Contact Material | Copper Alloy |
| Insulation Material | Polyamide (PA6T), Nylon 6T |
| Features | - |
| Operating Temperature | -40°C ~ 125°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Black |
| Current Rating (Amps) | 1A |
| Voltage Rating | 50V |
Submit your RFQ for 62202021121 and get a quote within 24 hours.
