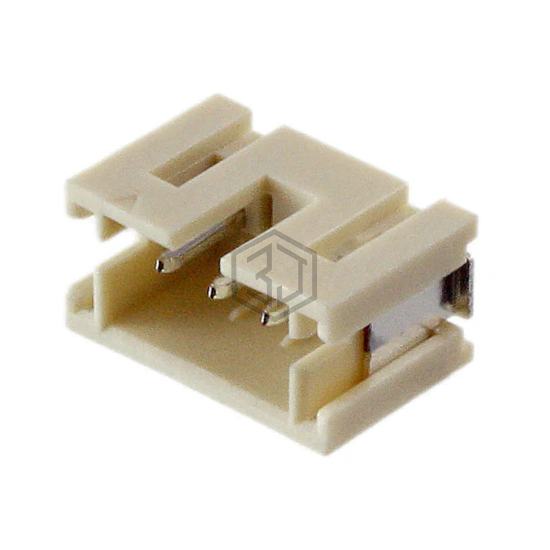

CONN HEADER SMD 3POS 2MM
620303124022 is a Rectangular Connectors - Headers, Male Pins manufactured by Würth Elektronik. CONN HEADER SMD 3POS 2MM. Key specifications: mounting type Surface Mount, operating temperature -25°C ~ 85°C, voltage rating 100V, contact material Copper Alloy.
In Stock: 1,245
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.079" (2.00mm) |
| Number of Positions | 3 |
| Number of Rows | 1 |
| Row Spacing - Mating | - |
| Number of Positions Loaded | All |
| Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Surface Mount |
| Termination | Solder |
| Fastening Type | Detent Lock |
| Contact Length - Mating | 0.138" (3.50mm) |
| Contact Length - Post | - |
| Overall Contact Length | - |
| Insulation Height | 0.263" (6.67mm) |
| Contact Shape | Square |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin |
| Contact Material | Copper Alloy |
| Insulation Material | Polyamide (PA9T), Nylon 9T |
| Features | Pick and Place, Solder Retention |
| Operating Temperature | -25°C ~ 85°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Beige |
| Current Rating (Amps) | 2A |
| Voltage Rating | 100V |
Submit your RFQ for 620303124022 and get a quote within 24 hours.
