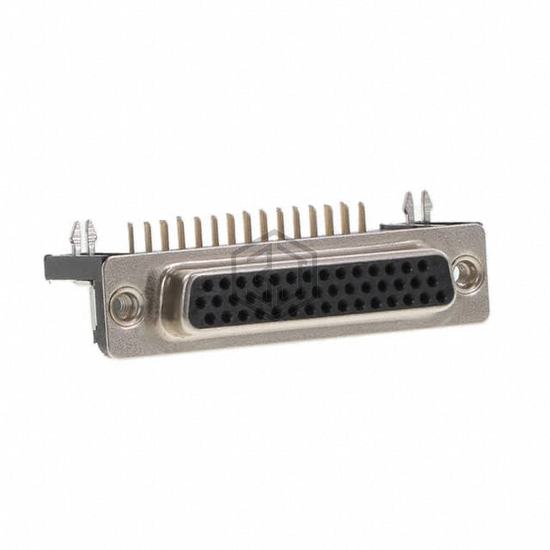

CONN D-SUB HD RCPT 44P R/A SLDR
618044325223 is a D-Sub Connectors manufactured by Würth Elektronik. CONN D-SUB HD RCPT 44P R/A SLDR. Key specifications: mounting type Through Hole, Right Angle, current rating (amps) 3A, termination Solder, number of positions 44.
In Stock: 45
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Style | D-Sub, High Density |
| Connector Type | Receptacle, Female Sockets |
| Number of Positions | 44 |
| Number of Rows | 3 |
| Mounting Type | Through Hole, Right Angle |
| Shell Size, Connector Layout | 3 (DB, B) High Density |
| Contact Type | Signal |
| Flange Feature | Board Side (4-40) |
| Termination | Solder |
| Primary Material | - |
| Shell Material, Finish | Steel, Nickel Plated |
| Contact Finish | Gold |
| Contact Finish Thickness | - |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Current Rating (Amps) | 3A |
| Backset Spacing | 0.350" (8.89mm) |
| Features | Board Lock |
Submit your RFQ for 618044325223 and get a quote within 24 hours.
