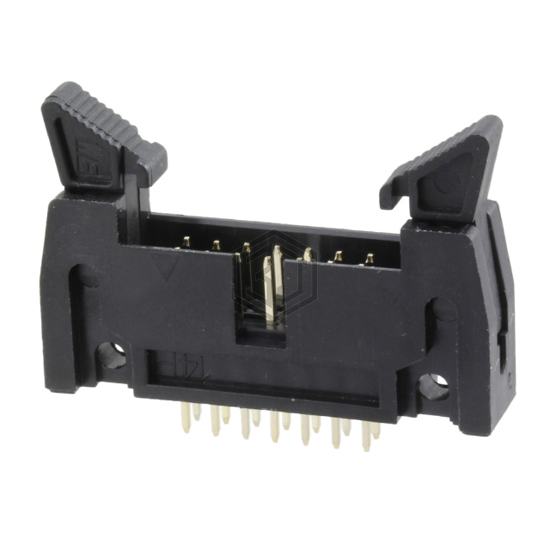

CONN HEADER VERT 14POS 2.54MM
61201422021 is a Rectangular Connectors - Headers, Male Pins manufactured by Würth Elektronik. CONN HEADER VERT 14POS 2.54MM. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 125°C, voltage rating 250V, contact material Copper Alloy.
In Stock: 242
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.100" (2.54mm) |
| Number of Positions | 14 |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.100" (2.54mm) |
| Number of Positions Loaded | All |
| Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Through Hole |
| Termination | Solder |
| Fastening Type | Latch Lock/Eject Hooks, Short |
| Contact Length - Mating | 0.224" (5.70mm) |
| Contact Length - Post | 0.134" (3.40mm) |
| Overall Contact Length | - |
| Insulation Height | 0.669" (17.00mm) |
| Contact Shape | Square |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | - |
| Contact Finish - Post | - |
| Contact Material | Copper Alloy |
| Insulation Material | Polybutylene Terephthalate (PBT) |
| Features | Keying Slot |
| Operating Temperature | -40°C ~ 125°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Black |
| Current Rating (Amps) | 3A |
| Voltage Rating | 250V |
Submit your RFQ for 61201422021 and get a quote within 24 hours.
