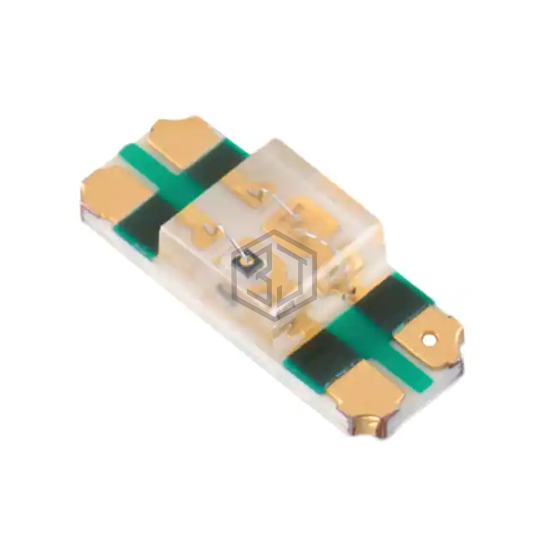

LED GRN/YLW CLR 1205 SMD BOTTOM
156125YV73000 is a LED Indication - Discrete manufactured by Würth Elektronik. LED GRN/YLW CLR 1205 SMD BOTTOM. Key specifications: mounting type Surface Mount, Bottom Entry, voltage - forward (vf) (typ) 2.1V, package / case 1205 (3212 Metric), color Green, Yellow.
In Stock: 4,680
| Attribute | Value |
|---|---|
| Product Status | Active |
| Color | Green, Yellow |
| Configuration | Independent |
| Lens Color | Colorless |
| Lens Transparency | Clear |
| Millicandela Rating | 50mcd |
| Lens Style | Square with Flat Top |
| Lens Size | 1.20mm |
| Voltage - Forward (Vf) (Typ) | 2.1V |
| Current - Test | 20mA Green, 20mA Yellow |
| Viewing Angle | 120° |
| Mounting Type | Surface Mount, Bottom Entry |
| Wavelength - Dominant | 571nm |
| Wavelength - Peak | 573nm |
| Features | - |
| Package / Case | 1205 (3212 Metric) |
| Supplier Device Package | 1205 |
| Size / Dimension | 3.20mm L x 1.20mm W |
| Height (Max) | 0.80mm |
