WL-SFRW SMT FULL-COLOR REVERSE M

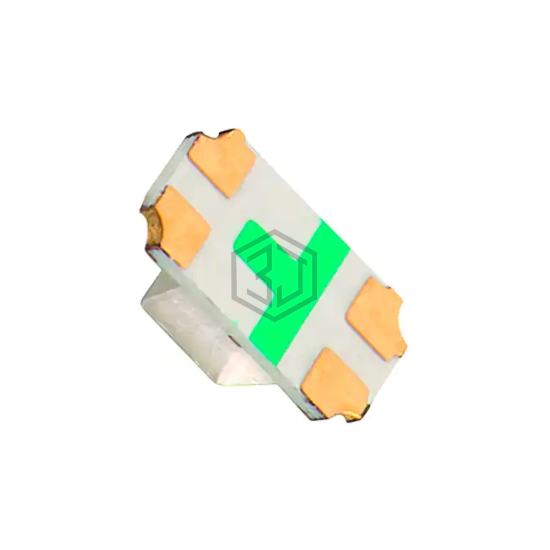

156120M173000 is a LED Indication - Discrete manufactured by Würth Elektronik. WL-SFRW SMT FULL-COLOR REVERSE M. Key specifications: mounting type Surface Mount, Bottom Entry, voltage - forward (vf) (typ) 2V Red, 3.3V Green, 3.3V Blue, package / case 1206 (3216 Metric), color Red, Green, Blue (RGB).
In Stock: 24,959
| Attribute | Value |
|---|---|
| Product Status | Active |
| Color | Red, Green, Blue (RGB) |
| Configuration | Common Anode |
| Lens Color | Colorless |
| Lens Transparency | Clear |
| Millicandela Rating | 270mcd Red, 700mcd Green, 250mcd Blue |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 1.40mm x 1.60mm |
| Voltage - Forward (Vf) (Typ) | 2V Red, 3.3V Green, 3.3V Blue |
| Current - Test | 20mA Red, 20mA Green, 20mA Blue |
| Viewing Angle | 120° |
| Mounting Type | Surface Mount, Bottom Entry |
| Wavelength - Dominant | 624nm Red, 525nm Green, 470nm Blue |
| Wavelength - Peak | 632nm Red, 520nm Green, 468nm Blue |
| Features | - |
| Package / Case | 1206 (3216 Metric) |
| Supplier Device Package | 1206 |
| Size / Dimension | 3.20mm L x 1.60mm W |
| Height (Max) | 1.25mm |
Submit your RFQ for 156120M173000 and get a quote within 24 hours.
