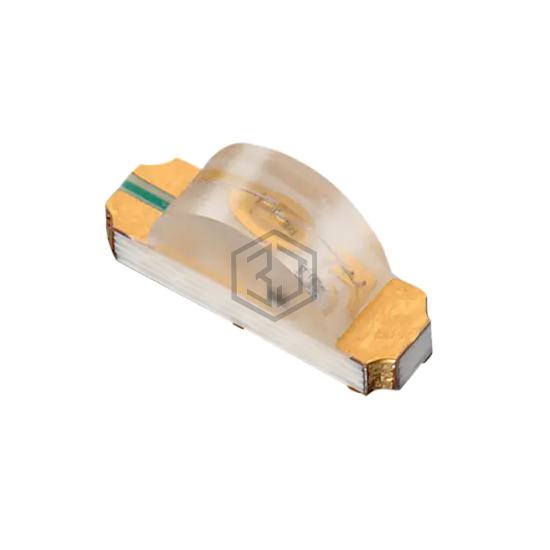

LED GRN/RED CLEAR 2SMD R/A
155124RG73200 is a LED Indication - Discrete manufactured by Würth Elektronik. LED GRN/RED CLEAR 2SMD R/A. Key specifications: mounting type Surface Mount, Right Angle, voltage - forward (vf) (typ) 3.3V Green, 2V Red, package / case 2-SMD, Side View, color Green, Red.
In Stock: 19,958
| Attribute | Value |
|---|---|
| Product Status | Active |
| Color | Green, Red |
| Configuration | Common Anode |
| Lens Color | Colorless |
| Lens Transparency | Clear |
| Millicandela Rating | 160mcd Green, 60mcd Red |
| Lens Style | Rectangle with Domed Top |
| Lens Size | 2.20mm x 1.00mm |
| Voltage - Forward (Vf) (Typ) | 3.3V Green, 2V Red |
| Current - Test | 20mA Green, 20mA Red |
| Viewing Angle | 120° |
| Mounting Type | Surface Mount, Right Angle |
| Wavelength - Dominant | 525nm Green, 624nm Red |
| Wavelength - Peak | 520nm Green, 632nm Red |
| Features | - |
| Package / Case | 2-SMD, Side View |
| Supplier Device Package | 2-SMD |
| Size / Dimension | 3.20mm L x 1.50mm W |
| Height (Max) | 1.00mm |
Submit your RFQ for 155124RG73200 and get a quote within 24 hours.
