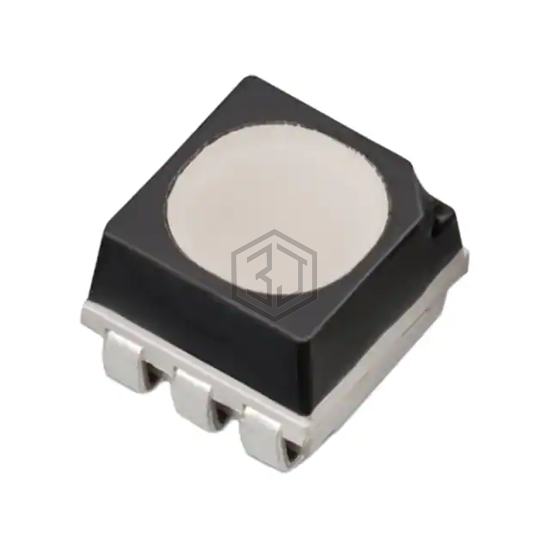

LED RGB DIFFUSED 6PLCC SMD
150353M153300 is a LED Indication - Discrete manufactured by Würth Elektronik. LED RGB DIFFUSED 6PLCC SMD. Key specifications: mounting type Surface Mount, voltage - forward (vf) (typ) 2V Red, 3.2V Green, 3.2V Blue, package / case 6-SMD, J-Lead, color Red, Green, Blue (RGB).
In Stock: 10,282
| Attribute | Value |
|---|---|
| Product Status | Active |
| Color | Red, Green, Blue (RGB) |
| Configuration | Independent |
| Lens Color | - |
| Lens Transparency | Diffused |
| Millicandela Rating | 800mcd Red, 1900mcd Green, 400mcd Blue |
| Lens Style | Round with Flat Top |
| Lens Size | - |
| Voltage - Forward (Vf) (Typ) | 2V Red, 3.2V Green, 3.2V Blue |
| Current - Test | 20mA Red, 20mA Green, 20mA Blue |
| Viewing Angle | 120° |
| Mounting Type | Surface Mount |
| Wavelength - Dominant | 625nm Red, 520nm Green, 470nm Blue |
| Wavelength - Peak | 635nm Red, 515nm Green, 465nm Blue |
| Features | - |
| Package / Case | 6-SMD, J-Lead |
| Supplier Device Package | 6-PLCC |
| Size / Dimension | 3.52mm L x 3.50mm W |
| Height (Max) | 2.90mm |
Submit your RFQ for 150353M153300 and get a quote within 24 hours.
