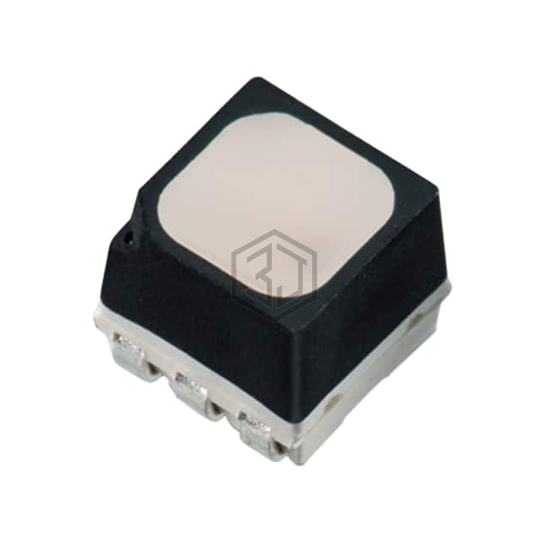

WL-SFTD SMT FULL-COLOR TOP LED D
150202M153130 is a LED Indication - Discrete manufactured by Würth Elektronik. WL-SFTD SMT FULL-COLOR TOP LED D. Key specifications: mounting type Surface Mount, voltage - forward (vf) (typ) 2V Red, 3.2V Green, 3.2V Blue, package / case 4-SMD, J-Lead, color Red, Green, Blue (RGB).
In Stock: 5,463
| Attribute | Value |
|---|---|
| Product Status | Active |
| Color | Red, Green, Blue (RGB) |
| Configuration | Common Anode |
| Lens Color | - |
| Lens Transparency | Diffused |
| Millicandela Rating | 350mcd Red, 750mcd Green, 120mcd Blue |
| Lens Style | Oval with Flat Top |
| Lens Size | - |
| Voltage - Forward (Vf) (Typ) | 2V Red, 3.2V Green, 3.2V Blue |
| Current - Test | 20mA |
| Viewing Angle | 120° |
| Mounting Type | Surface Mount |
| Wavelength - Dominant | 625nm Red, 520nm Green, 470nm Blue |
| Wavelength - Peak | 635nm Red, 515nm Green, 465nm Blue |
| Features | - |
| Package / Case | 4-SMD, J-Lead |
| Supplier Device Package | 4-SMD |
| Size / Dimension | 2.00mm L x 2.20mm W |
| Height (Max) | 2.00mm |
Submit your RFQ for 150202M153130 and get a quote within 24 hours.
