WL-SFTD SMT FULL-COLOR TOP LED D

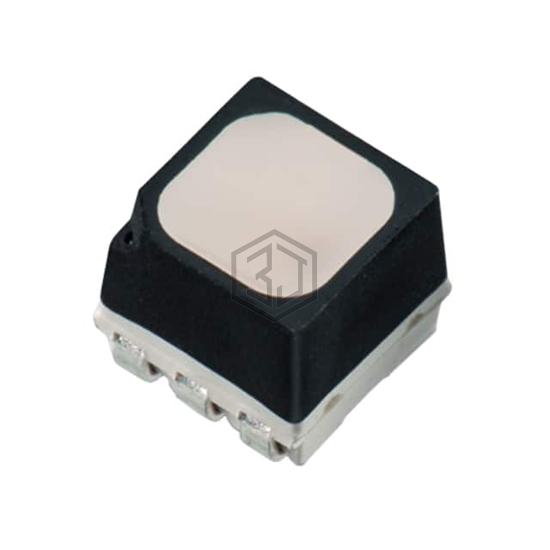

150161M153130 is a LED Indication - Discrete manufactured by Würth Elektronik. WL-SFTD SMT FULL-COLOR TOP LED D. Key specifications: mounting type Surface Mount, voltage - forward (vf) (typ) 2V Red, 3.2V Green, 3.2V Blue, package / case 0606 (1616 Metric), color Red, Green, Blue (RGB).
In Stock: 8,861
| Attribute | Value |
|---|---|
| Product Status | Active |
| Color | Red, Green, Blue (RGB) |
| Configuration | Common Anode |
| Lens Color | - |
| Lens Transparency | Diffused |
| Millicandela Rating | 200mcd Red, 400mcd Green, 60mcd Blue |
| Lens Style | Oval with Flat Top |
| Lens Size | - |
| Voltage - Forward (Vf) (Typ) | 2V Red, 3.2V Green, 3.2V Blue |
| Current - Test | 20mA |
| Viewing Angle | 120° |
| Mounting Type | Surface Mount |
| Wavelength - Dominant | 625nm Red, 520nm Green, 470nm Blue |
| Wavelength - Peak | 635nm Red, 515nm Green, 465nm Blue |
| Features | - |
| Package / Case | 0606 (1616 Metric) |
| Supplier Device Package | 0606 |
| Size / Dimension | 1.60mm L x 1.70mm W |
| Height (Max) | 1.70mm |
