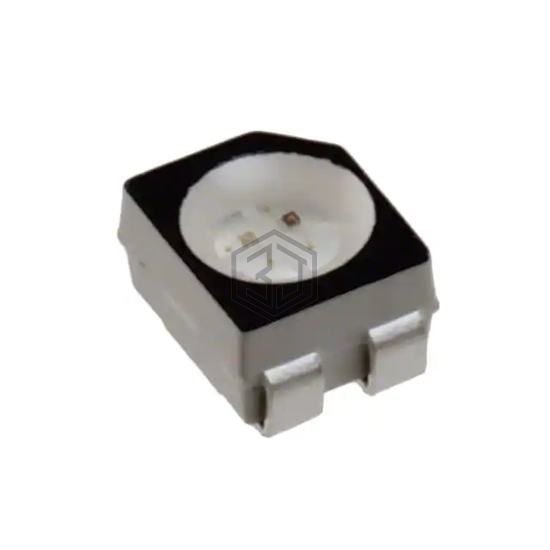

LED BLUE/YELLOW CLEAR 3528 SMD
150141YB73100 is a LED Indication - Discrete manufactured by Würth Elektronik. LED BLUE/YELLOW CLEAR 3528 SMD. Key specifications: mounting type Surface Mount, voltage - forward (vf) (typ) 3.2V Blue, 2V Yellow, package / case 4-PLCC, color Blue, Yellow.
In Stock: 4,950
| Attribute | Value |
|---|---|
| Product Status | Active |
| Color | Blue, Yellow |
| Configuration | Independent |
| Lens Color | Colorless |
| Lens Transparency | Clear |
| Millicandela Rating | 240mcd Blue, 220mcd Yellow |
| Lens Style | Round with Flat Top |
| Lens Size | 2.40mm Dia |
| Voltage - Forward (Vf) (Typ) | 3.2V Blue, 2V Yellow |
| Current - Test | 20mA Blue, 20mA Yellow |
| Viewing Angle | 120° |
| Mounting Type | Surface Mount |
| Wavelength - Dominant | 470nm Blue, 590nm Yellow |
| Wavelength - Peak | 465nm Blue, 592nm Yellow |
| Features | - |
| Package / Case | 4-PLCC |
| Supplier Device Package | 3528 |
| Size / Dimension | 3.20mm L x 2.80mm W |
| Height (Max) | 2.10mm |
