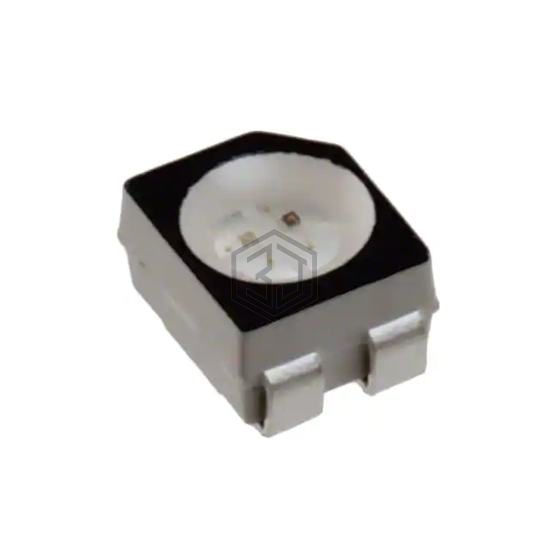

LED GREEN/RED CLEAR 3528 SMD
150141RV73100 is a LED Indication - Discrete manufactured by Würth Elektronik. LED GREEN/RED CLEAR 3528 SMD. Key specifications: mounting type Surface Mount, voltage - forward (vf) (typ) 2V Green, 2V Red, package / case 4-PLCC, color Green, Red.
In Stock: 86,995
| Attribute | Value |
|---|---|
| Product Status | Active |
| Color | Green, Red |
| Configuration | Independent |
| Lens Color | Colorless |
| Lens Transparency | Clear |
| Millicandela Rating | 60mcd Green, 250mcd Red |
| Lens Style | Round with Flat Top |
| Lens Size | 2.40mm Dia |
| Voltage - Forward (Vf) (Typ) | 2V Green, 2V Red |
| Current - Test | 20mA Green, 20mA Red |
| Viewing Angle | 120° |
| Mounting Type | Surface Mount |
| Wavelength - Dominant | 570nm Green, 625nm Red |
| Wavelength - Peak | 572nm Green, 630nm Red |
| Features | - |
| Package / Case | 4-PLCC |
| Supplier Device Package | 3528 |
| Size / Dimension | 3.20mm L x 2.80mm W |
| Height (Max) | 2.10mm |
