LED GREEN/YELLOW CLEAR 0606 SMD

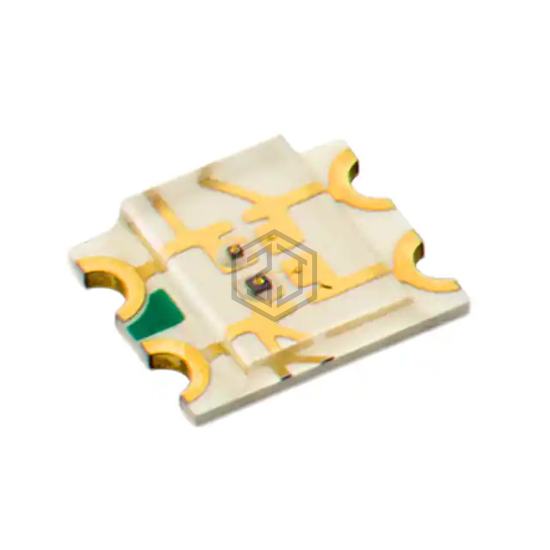

150066YV74000 is a LED Indication - Discrete manufactured by Würth Elektronik. LED GREEN/YELLOW CLEAR 0606 SMD. Key specifications: mounting type Surface Mount, voltage - forward (vf) (typ) 2V Green, 2V Yellow, package / case 0606 (1616 Metric), color Green, Yellow.
In Stock: 5,154
| Attribute | Value |
|---|---|
| Product Status | Active |
| Color | Green, Yellow |
| Configuration | Independent |
| Lens Color | Colorless |
| Lens Transparency | Clear |
| Millicandela Rating | 30mcd Green, 120mcd Yellow |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 1.60mm x 1.10mm |
| Voltage - Forward (Vf) (Typ) | 2V Green, 2V Yellow |
| Current - Test | - |
| Viewing Angle | 130° |
| Mounting Type | Surface Mount |
| Wavelength - Dominant | 570nm Green, 590nm Yellow |
| Wavelength - Peak | 572nm Green, 595nm Yellow |
| Features | - |
| Package / Case | 0606 (1616 Metric) |
| Supplier Device Package | 0606 |
| Size / Dimension | 1.60mm L x 1.60mm W |
| Height (Max) | 0.50mm |
Submit your RFQ for 150066YV74000 and get a quote within 24 hours.
