WL-SBCW SMD BI-COLOR CHIP LED WA

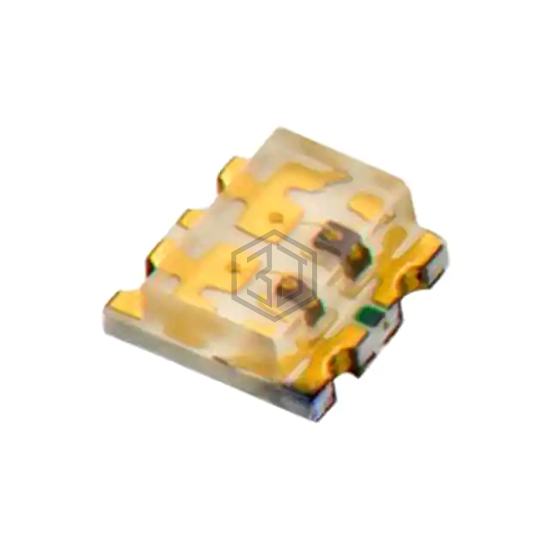

150066RG74000 is a LED Indication - Discrete manufactured by Würth Elektronik. WL-SBCW SMD BI-COLOR CHIP LED WA. Key specifications: mounting type Surface Mount, voltage - forward (vf) (typ) 3.2V Green, 2V Red, package / case 0606 (1616 Metric), color Green, Red.
In Stock: 6,365
| Attribute | Value |
|---|---|
| Product Status | Active |
| Color | Green, Red |
| Configuration | Independent |
| Lens Color | Colorless |
| Lens Transparency | Clear |
| Millicandela Rating | 560mcd Green, 300mcd Red |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 1.60mm x 1.10mm |
| Voltage - Forward (Vf) (Typ) | 3.2V Green, 2V Red |
| Current - Test | 20mA Green, 20mA Red |
| Viewing Angle | 130° |
| Mounting Type | Surface Mount |
| Wavelength - Dominant | 520nm Green, 625nm Red |
| Wavelength - Peak | 515nm Green, 630nm Red |
| Features | - |
| Package / Case | 0606 (1616 Metric) |
| Supplier Device Package | 0606 |
| Size / Dimension | 1.60mm L x 1.60mm W |
| Height (Max) | 0.80mm |
