LED RGB CLEAR SMD

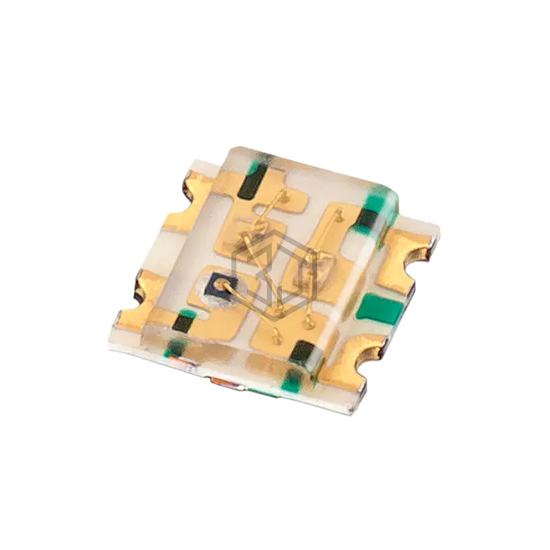

150066M173000 is a LED Indication - Discrete manufactured by Würth Elektronik. LED RGB CLEAR SMD. Key specifications: mounting type Surface Mount, voltage - forward (vf) (typ) 1.9V Red, 3.3V Green, 3.3V Blue, package / case 0606 (1616 Metric), color Red, Green, Blue (RGB).
In Stock: 8,615
| Attribute | Value |
|---|---|
| Product Status | Active |
| Color | Red, Green, Blue (RGB) |
| Configuration | Common Anode |
| Lens Color | Colorless |
| Lens Transparency | Clear |
| Millicandela Rating | 70mcd Red, 360mcd Green, 80mcd Blue |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 1.10mm x 1.60mm |
| Voltage - Forward (Vf) (Typ) | 1.9V Red, 3.3V Green, 3.3V Blue |
| Current - Test | 20mA Red, 20mA Green, 20mA Blue |
| Viewing Angle | 120° |
| Mounting Type | Surface Mount |
| Wavelength - Dominant | 622nm Red, 527nm Green, 470nm Blue |
| Wavelength - Peak | 636nm Red, 520nm Green, 468nm Blue |
| Features | - |
| Package / Case | 0606 (1616 Metric) |
| Supplier Device Package | - |
| Size / Dimension | 1.60mm L x 1.60mm W |
| Height (Max) | 0.50mm |
