WL-SFCC SMT FULL-COLOR CHIP LED

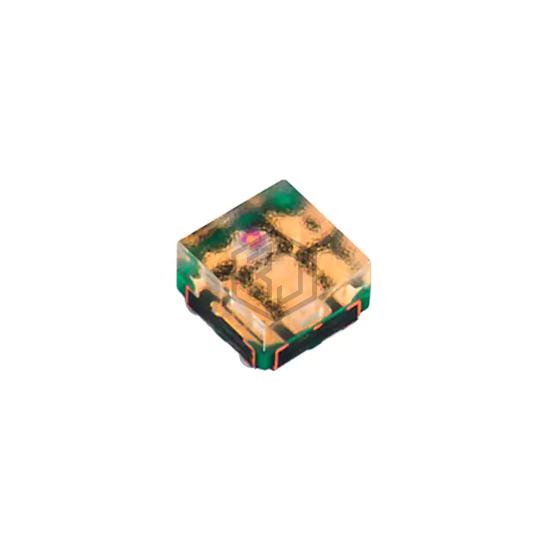

150044M155260 is a LED Indication - Discrete manufactured by Würth Elektronik. WL-SFCC SMT FULL-COLOR CHIP LED. Key specifications: mounting type Surface Mount, voltage - forward (vf) (typ) 2V Red, 2.7V Green, 2.8V Blue, package / case 0404 (1010 Metric), color Red, Green, Blue (RGB).
In Stock: 33,204
| Attribute | Value |
|---|---|
| Product Status | Active |
| Color | Red, Green, Blue (RGB) |
| Configuration | Common Anode |
| Lens Color | - |
| Lens Transparency | Diffused |
| Millicandela Rating | 80mcd Red, 180mcd Green, 50mcd Blue |
| Lens Style | Square with Flat Top |
| Lens Size | 1.00mm |
| Voltage - Forward (Vf) (Typ) | 2V Red, 2.7V Green, 2.8V Blue |
| Current - Test | 5mA Red, 5mA Green, 5mA Blue |
| Viewing Angle | 140° |
| Mounting Type | Surface Mount |
| Wavelength - Dominant | 621nm Red, 530nm Green, 470nm Blue |
| Wavelength - Peak | 625nm Red, 522nm Green, 465nm Blue |
| Features | - |
| Package / Case | 0404 (1010 Metric) |
| Supplier Device Package | 0404 |
| Size / Dimension | 1.00mm L x 1.00mm W |
| Height (Max) | 0.75mm |
