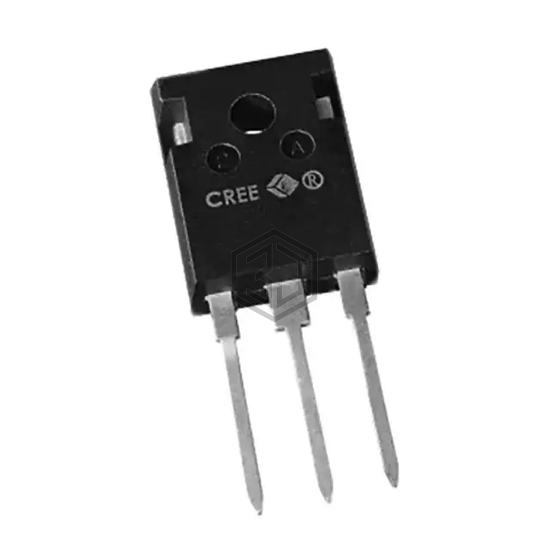

SICFET N-CH 1200V 7.6A TO247-3
C3M0350120D is a Transistors - FETs, MOSFETs - Single manufactured by Wolfspeed, Inc.. SICFET N-CH 1200V 7.6A TO247-3. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-247-3.
In Stock: 880
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | N-Channel |
| Technology | SiCFET (Silicon Carbide) |
| Drain to Source Voltage (Vdss) | 1200 V |
| Current - Continuous Drain (Id) @ 25°C | 7.6A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 15V |
| Rds On (Max) @ Id, Vgs | 455mOhm @ 3.6A, 15V |
| Vgs(th) (Max) @ Id | 3.6V @ 1mA |
| Gate Charge (Qg) (Max) @ Vgs | 19 nC @ 15 V |
| Vgs (Max) | +15V, -4V |
| Input Capacitance (Ciss) (Max) @ Vds | 345 pF @ 1000 V |
| FET Feature | - |
| Power Dissipation (Max) | 50W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Supplier Device Package | TO-247-3 |
| Package / Case | TO-247-3 |
Submit your RFQ for C3M0350120D and get a quote within 24 hours.
