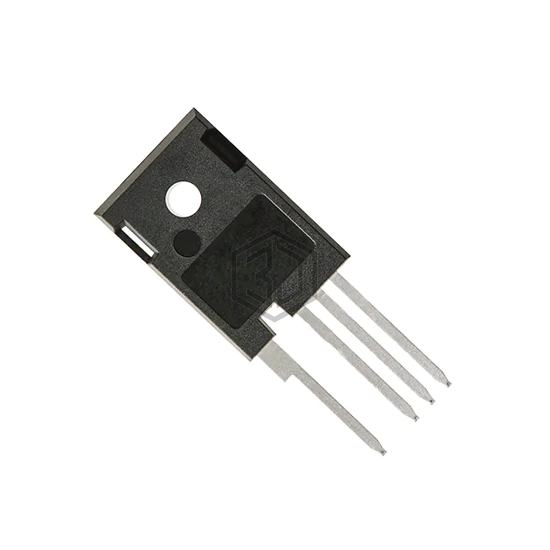

SICFET N-CH 1000V 35A TO247-4L
C3M0065100K is a Transistors - FETs, MOSFETs - Single manufactured by Wolfspeed, Inc.. SICFET N-CH 1000V 35A TO247-4L. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-247-4.
In Stock: 4,510
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | N-Channel |
| Technology | SiCFET (Silicon Carbide) |
| Drain to Source Voltage (Vdss) | 1000 V |
| Current - Continuous Drain (Id) @ 25°C | 35A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 15V |
| Rds On (Max) @ Id, Vgs | 78mOhm @ 20A, 15V |
| Vgs(th) (Max) @ Id | 3.5V @ 5mA |
| Gate Charge (Qg) (Max) @ Vgs | 35 nC @ 15 V |
| Vgs (Max) | +19V, -8V |
| Input Capacitance (Ciss) (Max) @ Vds | 660 pF @ 600 V |
| FET Feature | - |
| Power Dissipation (Max) | 113.5W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Supplier Device Package | TO-247-4L |
| Package / Case | TO-247-4 |
Submit your RFQ for C3M0065100K and get a quote within 24 hours.
