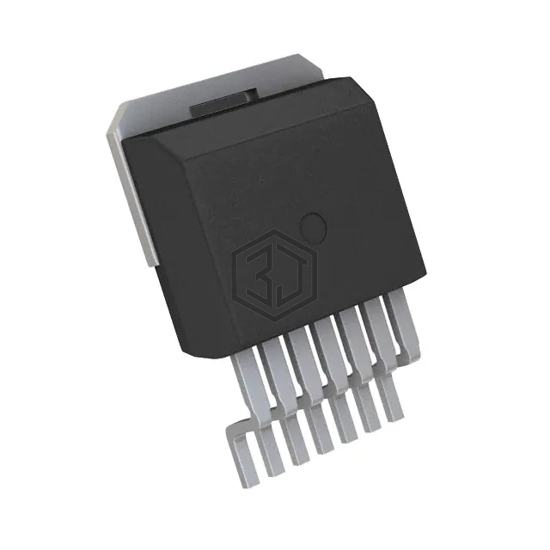

SICFET N-CH 900V 35A D2PAK-7
C3M0065090J is a Transistors - FETs, MOSFETs - Single manufactured by Wolfspeed, Inc.. SICFET N-CH 900V 35A D2PAK-7. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case TO-263-8, D²Pak (7 Leads + Tab), TO-263CA.
In Stock: 2,356
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | N-Channel |
| Technology | SiCFET (Silicon Carbide) |
| Drain to Source Voltage (Vdss) | 900 V |
| Current - Continuous Drain (Id) @ 25°C | 35A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 15V |
| Rds On (Max) @ Id, Vgs | 78mOhm @ 20A, 15V |
| Vgs(th) (Max) @ Id | 2.1V @ 5mA |
| Gate Charge (Qg) (Max) @ Vgs | 30 nC @ 15 V |
| Vgs (Max) | +19V, -8V |
| Input Capacitance (Ciss) (Max) @ Vds | 660 pF @ 600 V |
| FET Feature | - |
| Power Dissipation (Max) | 113W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | D2PAK-7 |
| Package / Case | TO-263-8, D²Pak (7 Leads + Tab), TO-263CA |
Submit your RFQ for C3M0065090J and get a quote within 24 hours.
