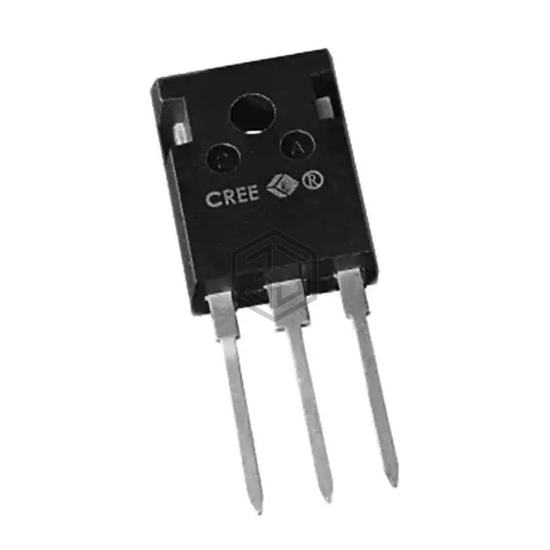

SICFET N-CH 1200V 100A TO247-3
C3M0021120D is a Transistors - FETs, MOSFETs - Single manufactured by Wolfspeed, Inc.. SICFET N-CH 1200V 100A TO247-3. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 175°C (TJ), package / case TO-247-3.
In Stock: 2,373
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | N-Channel |
| Technology | SiCFET (Silicon Carbide) |
| Drain to Source Voltage (Vdss) | 1200 V |
| Current - Continuous Drain (Id) @ 25°C | 100A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 15V |
| Rds On (Max) @ Id, Vgs | 28.8mOhm @ 50A, 15V |
| Vgs(th) (Max) @ Id | 3.6V @ 17.7mA |
| Gate Charge (Qg) (Max) @ Vgs | 160 nC @ 15 V |
| Vgs (Max) | +15V, -4V |
| Input Capacitance (Ciss) (Max) @ Vds | 4818 pF @ 1000 V |
| FET Feature | - |
| Power Dissipation (Max) | 469W (Tc) |
| Operating Temperature | -40°C ~ 175°C (TJ) |
| Mounting Type | Through Hole |
| Supplier Device Package | TO-247-3 |
| Package / Case | TO-247-3 |
Submit your RFQ for C3M0021120D and get a quote within 24 hours.
