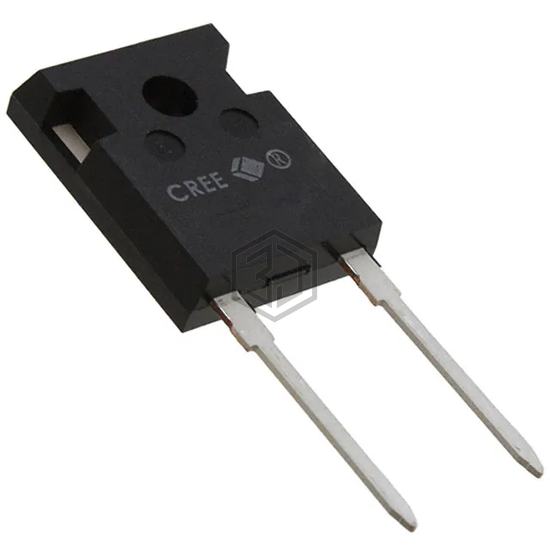

C3D25170H
DIODE SCHOTTKY 1.7KV 26.3A TO247
C3D25170H is a Diodes - Rectifiers - Single manufactured by Wolfspeed, Inc.. DIODE SCHOTTKY 1.7KV 26.3A TO247. Key specifications: mounting type Through Hole, package / case TO-247-2.
In Stock: 488
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Diode Type | Silicon Carbide Schottky |
| Voltage - DC Reverse (Vr) (Max) | 1700 V |
| Current - Average Rectified (Io) | 26.3A (DC) |
| Voltage - Forward (Vf) (Max) @ If | 2.5 V @ 25 A |
| Speed | No Recovery Time > 500mA (Io) |
| Reverse Recovery Time (trr) | 0 ns |
| Current - Reverse Leakage @ Vr | 100 µA @ 1700 V |
| Capacitance @ Vr, F | 2079pF @ 0V, 1MHz |
| Mounting Type | Through Hole |
| Package / Case | TO-247-2 |
| Supplier Device Package | TO-247-2 |
| Operating Temperature - Junction | -55°C ~ 175°C |
Frequently Asked Questions
C3D25170H is a Diodes - Rectifiers - Single manufactured by Wolfspeed, Inc.. DIODE SCHOTTKY 1.7KV 26.3A TO247
The mounting type of C3D25170H is Through Hole.
The package type of C3D25170H is TO-247-2.
Yes, C3D25170H is listed as Obsolete. Consider requesting a quote for alternative parts.
