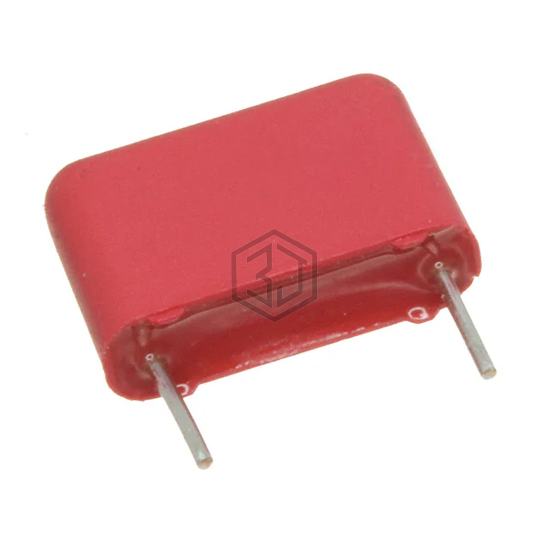

CAP FILM 8200PF 10% 630VDC RAD
MKX2AW18202C00KSSD is a Film Capacitors manufactured by WIMA. CAP FILM 8200PF 10% 630VDC RAD. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage rating - dc 630V, package / case Radial.
In Stock: 5,711
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 8200 pF |
| Tolerance | ±10% |
| Voltage Rating - AC | 305V |
| Voltage Rating - DC | 630V |
| Dielectric Material | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -55°C ~ 105°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 0.394" L x 0.157" W (10.00mm x 4.00mm) |
| Height - Seated (Max) | 0.354" (9.00mm) |
| Termination | PC Pins |
| Lead Spacing | 0.295" (7.50mm) |
| Applications | EMI, RFI Suppression |
| Ratings | X2 |
| Features | - |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| BFC237516822 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 8200PF 5% 630VDC RADIAL | 100% | View |
| MKP385282063JBI2B0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 8200PF 5% 630VDC RADIAL | 95% | View |
| MKP385282100JC02R0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 8200PF 5% 1KVDC RADIAL | 92% | View |
| MKP383282100JC02Z0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 8200PF 5% 1KVDC RADIAL | 92% | View |
| BFC237522822 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 8200PF 5% 1KVDC RADIAL | 90% | View |
| BFC247056822 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 8200PF 5% 400VDC RADIAL | 88% | View |
Submit your RFQ for MKX2AW18202C00KSSD and get a quote within 24 hours.
