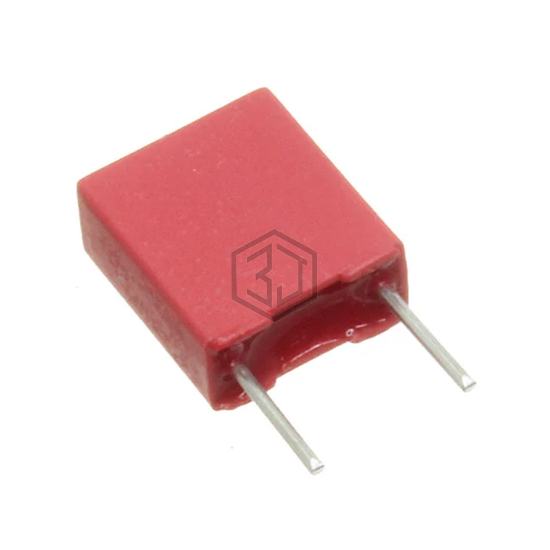

CAP FILM 6800PF 10% 630VDC RAD
MKP2J016801C00KSSD is a Film Capacitors manufactured by WIMA. CAP FILM 6800PF 10% 630VDC RAD. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 100°C, voltage rating - dc 630V, package / case Radial.
In Stock: 9,003
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 6800 pF |
| Tolerance | ±10% |
| Voltage Rating - AC | 250V |
| Voltage Rating - DC | 630V |
| Dielectric Material | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -55°C ~ 100°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 0.283" L x 0.138" W (7.20mm x 3.50mm) |
| Height - Seated (Max) | 0.335" (8.50mm) |
| Termination | PC Pins |
| Lead Spacing | 0.197" (5.00mm) |
| Applications | Automotive; High Frequency, Switching |
| Ratings | AEC-Q200 |
| Features | - |
