CAP FILM 1000PF 5% 2KVDC RAD

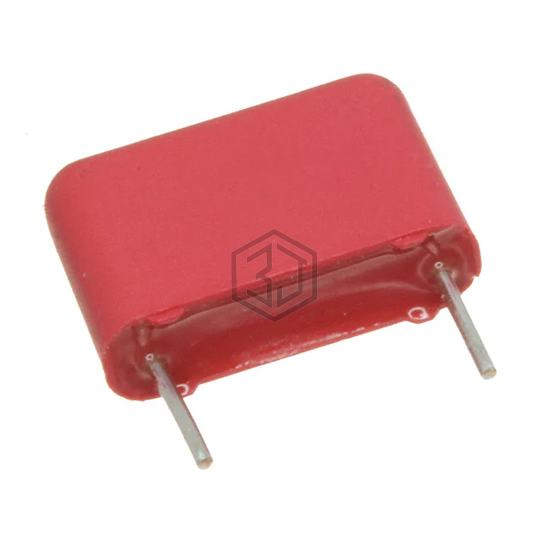

MKP1U011003C00JSSD is a Film Capacitors manufactured by WIMA. CAP FILM 1000PF 5% 2KVDC RAD. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 110°C, voltage rating - dc 2000V (2kV), package / case Radial.
In Stock: 8,737
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1000 pF |
| Tolerance | ±5% |
| Voltage Rating - AC | 700V |
| Voltage Rating - DC | 2000V (2kV) |
| Dielectric Material | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -55°C ~ 110°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 0.512" L x 0.157" W (13.00mm x 4.00mm) |
| Height - Seated (Max) | 0.354" (9.00mm) |
| Termination | PC Pins |
| Lead Spacing | 0.394" (10.00mm) |
| Applications | High Pulse, DV/DT |
| Ratings | - |
| Features | - |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| BFC238561103 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 1000PF 5% 2KVDC RADIAL | 100% | View |
| BFC238561911 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 910PF 5% 2KVDC RADIAL | 92% | View |
| MKP385191250JII2B0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 910PF 5% 2.5KVDC RADIAL | 86% | View |
| F339X121048KDM2B0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 1000PF 10% 1KVDC RADIAL | 85% | View |
| F339X121033KCM2B0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 1000PF 10% 800VDC RAD | 77% | View |
| MKT1820210104 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 1000PF 5% 1KVDC RADIAL | 74% | View |
Submit your RFQ for MKP1U011003C00JSSD and get a quote within 24 hours.
