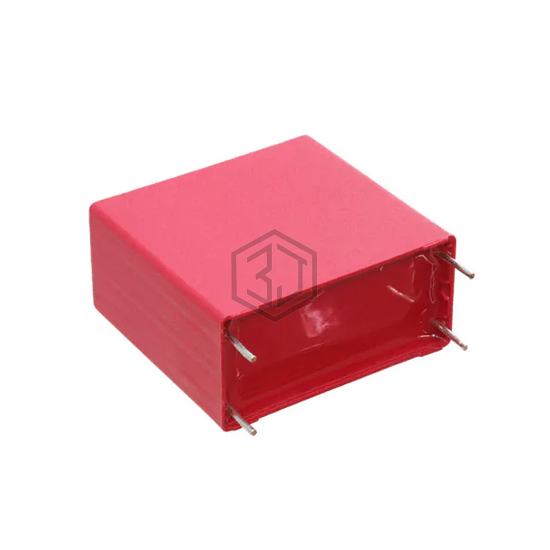

CAP FILM 0.47UF 10% 1.6KVDC RAD
MKP1T034706J00KSSD is a Film Capacitors manufactured by WIMA. CAP FILM 0.47UF 10% 1.6KVDC RAD. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 110°C, voltage rating - dc 1600V (1.6kV), package / case Radial.
In Stock: 1,426
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 0.47 µF |
| Tolerance | ±10% |
| Voltage Rating - AC | 650V |
| Voltage Rating - DC | 1600V (1.6kV) |
| Dielectric Material | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -55°C ~ 110°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 1.240" L x 0.787" W (31.50mm x 20.00mm) |
| Height - Seated (Max) | 1.555" (39.50mm) |
| Termination | PC Pins |
| Lead Spacing | 1.083" (27.50mm) |
| Applications | High Pulse, DV/DT |
| Ratings | - |
| Features | - |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MKP385447250JYI5T0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.47UF 5% 2.5KVDC RAD | 89% | View |
| F339X144733MKM2T0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.47UF 20% 800VDC RAD | 81% | View |
| F1778447K2IBT0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.47UF 10% 630VDC RAD | 77% | View |
| F339MX244731KIM2T0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.47UF 10% 630VDC RAD | 77% | View |
| F339MX244731JIP2T0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.47UF 5% 630VDC RADIAL | 77% | View |
| B32671P5474K000 | EPCOS - TDK Electronics | CAP FILM 0.47UF 10% 520VDC RAD | 68% | View |
