CAP FILM 4700PF 20% 630VDC RAD

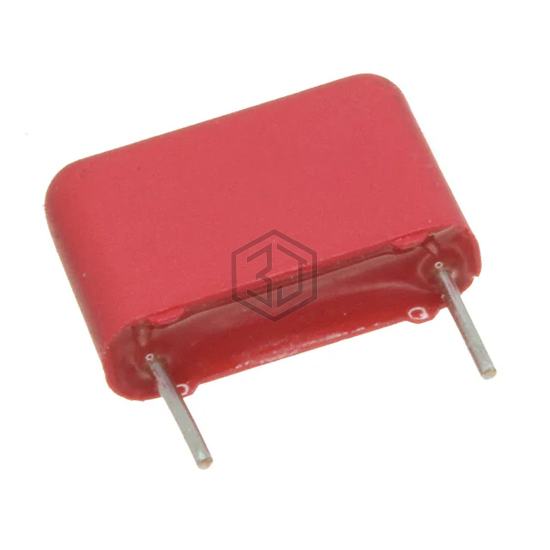

MKP1J014702C00MSSD is a Film Capacitors manufactured by WIMA. CAP FILM 4700PF 20% 630VDC RAD. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 110°C, voltage rating - dc 630V, package / case Radial.
In Stock: 3,446
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 4700 pF |
| Tolerance | ±20% |
| Voltage Rating - AC | 400V |
| Voltage Rating - DC | 630V |
| Dielectric Material | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -55°C ~ 110°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 0.394" L x 0.157" W (10.00mm x 4.00mm) |
| Height - Seated (Max) | 0.354" (9.00mm) |
| Termination | PC Pins |
| Lead Spacing | 0.295" (7.50mm) |
| Applications | High Pulse, DV/DT |
| Ratings | - |
| Features | - |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B32529C8472K000 | EPCOS - TDK Electronics | CAP FILM 4700PF 10% 630VDC RAD | 100% | View |
| BFC233915472 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 4700PF 10% 630VDC RAD | 96% | View |
| F339X124733KC02W0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 4700PF 10% 800VDC RAD | 94% | View |
| MKP385247100JDM2B0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 4700PF 5% 1KVDC RADIAL | 92% | View |
| F339X124748MDI2B0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 4700PF 20% 1KVDC RADIAL | 91% | View |
| B32671L9472K000 | EPCOS - TDK Electronics | CAP FILM 4700PF 10% 1KVDC RADIAL | 87% | View |
