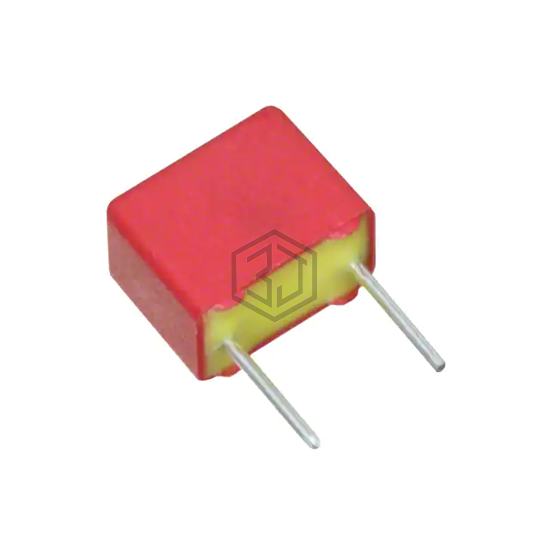

CAP FILM 680PF 10% 100VDC RAD
FKP2D006801D00KSSD is a Film Capacitors manufactured by WIMA. CAP FILM 680PF 10% 100VDC RAD. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 100°C, voltage rating - dc 100V, package / case Radial.
In Stock: 8,722
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 680 pF |
| Tolerance | ±10% |
| Voltage Rating - AC | 63V |
| Voltage Rating - DC | 100V |
| Dielectric Material | Polypropylene (PP) |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -55°C ~ 100°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 0.283" L x 0.177" W (7.20mm x 4.50mm) |
| Height - Seated (Max) | 0.236" (6.00mm) |
| Termination | PC Pins |
| Lead Spacing | 0.197" (5.00mm) |
| Applications | High Frequency, Switching; High Pulse, DV/DT |
| Ratings | - |
| Features | - |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MKP383168063JDI2B0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 680PF 5% 630VDC RADIAL | 61% | View |
| MKP1839168634R | Vishay Beyschlag/Draloric/BC Components | CAP FILM 680PF 5% 630VDC AXIAL | 59% | View |
| BFC237513681 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 680PF 3.5% 630VDC RAD | 56% | View |
| BFC237541681 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 680PF 3.5% 2KVDC RADIAL | 56% | View |
| MKP1841168205M | Vishay Beyschlag/Draloric/BC Components | CAP FILM 680PF 10% 2KVDC RADIAL | 56% | View |
| BFC237510681 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 680PF 5% 630VDC RADIAL | 56% | View |
