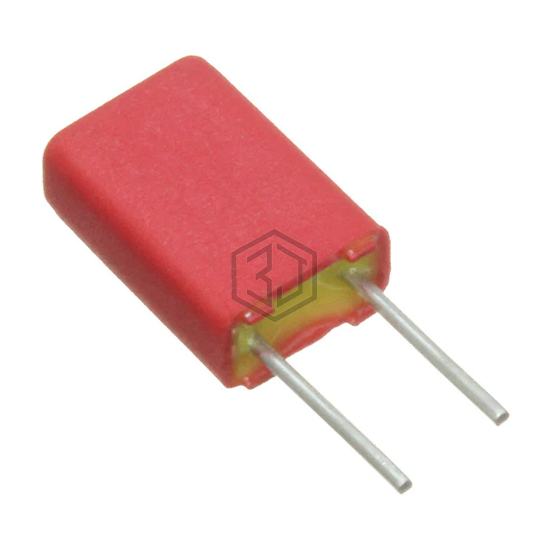

CAP FILM 220PF 10% 63VDC RAD
FKP0C002200B00KSSD is a Film Capacitors manufactured by WIMA. CAP FILM 220PF 10% 63VDC RAD. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 100°C, voltage rating - dc 63V, package / case Radial.
In Stock: 2,828
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 220 pF |
| Tolerance | ±10% |
| Voltage Rating - AC | 40V |
| Voltage Rating - DC | 63V |
| Dielectric Material | Polypropylene (PP) |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -55°C ~ 100°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 0.181" L x 0.098" W (4.60mm x 2.50mm) |
| Height - Seated (Max) | 0.276" (7.00mm) |
| Termination | PC Pins |
| Lead Spacing | 0.098" (2.50mm) |
| Applications | High Frequency, Switching; High Pulse, DV/DT |
| Ratings | - |
| Features | - |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| KP1830122014D | Vishay Beyschlag/Draloric/BC Components | CAP FILM 220PF 5% 100VDC RADIAL | 87% | View |
| MKP1839122631 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 220PF 1% 630VDC AXIAL | 56% | View |
| MKP1839122633G | Vishay Beyschlag/Draloric/BC Components | CAP FILM 220PF 2.5% 630VDC AXIAL | 56% | View |
| KP1836122134W | Vishay Beyschlag/Draloric/BC Components | CAP FILM 220PF 5% 1.6KVDC RADIAL | 56% | View |
| BFC237590382 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 220PF 5% 1KVDC RADIAL | 56% | View |
| BFC237544221 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 220PF 5% 2KVDC RADIAL | 56% | View |
Submit your RFQ for FKP0C002200B00KSSD and get a quote within 24 hours.
