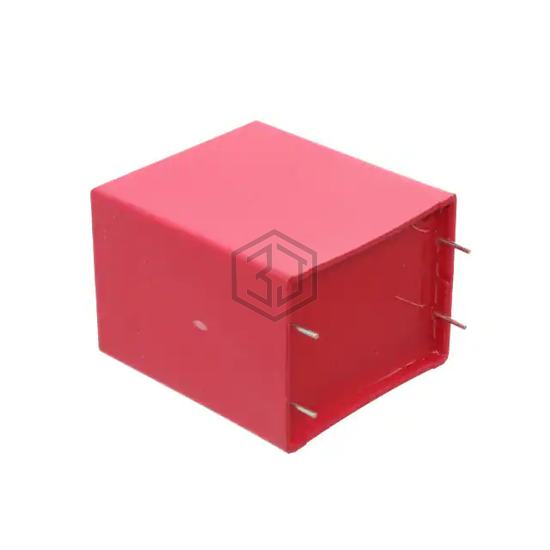

CAP FILM 40UF 10% 1.3KVDC RADIAL
DCP4R254009JD4KSSD is a Film Capacitors manufactured by WIMA. CAP FILM 40UF 10% 1.3KVDC RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage rating - dc 1300V (1.3kV), package / case Radial - 4 Leads.
In Stock: 45
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 40 µF |
| Tolerance | ±10% |
| Voltage Rating - AC | - |
| Voltage Rating - DC | 1300V (1.3kV) |
| Dielectric Material | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | 3.7 mOhms |
| Operating Temperature | -55°C ~ 105°C |
| Mounting Type | Through Hole |
| Package / Case | Radial - 4 Leads |
| Size / Dimension | 2.244" L x 1.772" W (57.00mm x 45.00mm) |
| Height - Seated (Max) | 2.559" (65.00mm) |
| Termination | PC Pins |
| Lead Spacing | 2.067" (52.50mm) |
| Applications | Automotive; DC Link, DC Filtering |
| Ratings | AEC-Q200 |
| Features | - |
Submit your RFQ for DCP4R254009JD4KSSD and get a quote within 24 hours.
