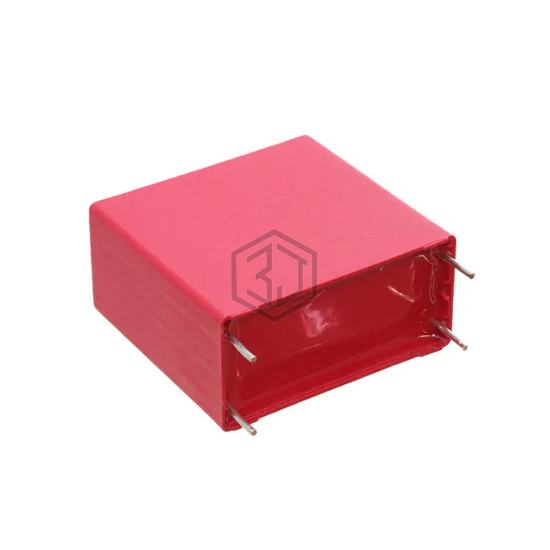

CAP FILM 5UF 10% 1.3KVDC RADIAL
DCP4R245006JD2KSSD is a Film Capacitors manufactured by WIMA. CAP FILM 5UF 10% 1.3KVDC RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage rating - dc 1300V (1.3kV), package / case Radial.
In Stock: 2,542
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 5 µF |
| Tolerance | ±10% |
| Voltage Rating - AC | - |
| Voltage Rating - DC | 1300V (1.3kV) |
| Dielectric Material | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | 14 mOhms |
| Operating Temperature | -55°C ~ 105°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 1.240" L x 0.787" W (31.50mm x 20.00mm) |
| Height - Seated (Max) | 1.555" (39.50mm) |
| Termination | PC Pins |
| Lead Spacing | 1.083" (27.50mm) |
| Applications | Automotive; DC Link, DC Filtering |
| Ratings | AEC-Q200 |
| Features | - |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| C4AQPBU4500M12J | KEMET | CAP FILM 5UF 5% 1.2KVDC RADIAL | 99% | View |
| MKP385551125JYI5T0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 5.1UF 5% 1.25KVDC RAD | 97% | View |
| MKP385551100JYI2T0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 5.1UF 5% 1KVDC RADIAL | 93% | View |
| MKP385551085JPI5T0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 5.1UF 5% 850VDC RADIAL | 90% | View |
| MKP385551085JPM5T0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 5.1UF 5% 850VDC RADIAL | 90% | View |
| MKP385551040JPP4T0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 5.1UF 5% 400VDC RADIAL | 77% | View |
Submit your RFQ for DCP4R245006JD2KSSD and get a quote within 24 hours.
