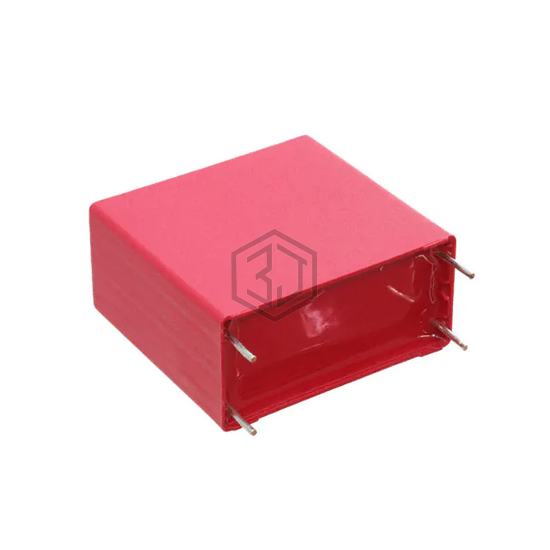

CAP FILM 10UF 10% 1.1KVDC RADIAL
DCP4P051007GD2KSSD is a Film Capacitors manufactured by WIMA. CAP FILM 10UF 10% 1.1KVDC RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage rating - dc 1100V (1.1kV), package / case Radial.
In Stock: 164
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 10 µF |
| Tolerance | ±10% |
| Voltage Rating - AC | - |
| Voltage Rating - DC | 1100V (1.1kV) |
| Dielectric Material | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | 7.2 mOhms |
| Operating Temperature | -55°C ~ 105°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 1.634" L x 0.787" W (41.50mm x 20.00mm) |
| Height - Seated (Max) | 1.555" (39.50mm) |
| Termination | PC Pins |
| Lead Spacing | 1.476" (37.50mm) |
| Applications | Automotive; DC Link, DC Filtering |
| Ratings | AEC-Q200 |
| Features | - |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MKP1848C61012JP2 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 10UF 5% 1.2KVDC RADIAL | 98% | View |
| C4AQULW5100A38J | KEMET | CAP FILM 10UF 5% 1.3KVDC RADIAL | 97% | View |
| C4AQJLW5100M33J | KEMET | CAP FILM 10UF 5% 700VDC RADIAL | 92% | View |
| MKT1820610065 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 10UF 10% 63VDC RADIAL | 71% | View |
| R75GR51004000J | KEMET | CAP FILM 10UF 5% 160VDC RAD | 71% | View |
| MKP385610016JPP2T0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 10UF 5% 160VDC RADIAL | 71% | View |
Submit your RFQ for DCP4P051007GD2KSSD and get a quote within 24 hours.
