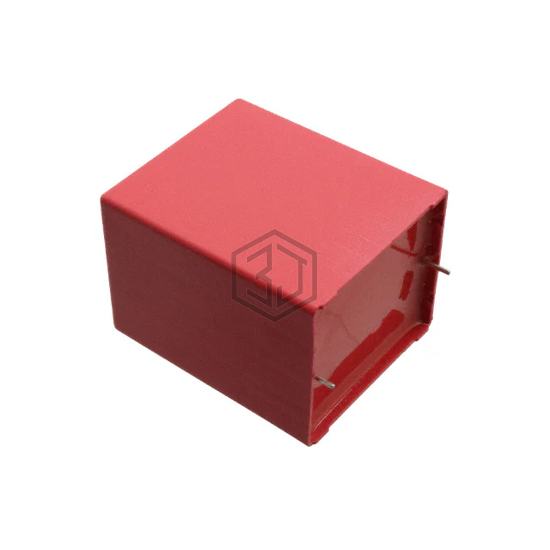

CAP FILM 50UF 5% 800VDC RAD
DCP4L055007JD2JSC9 is a Film Capacitors manufactured by WIMA. CAP FILM 50UF 5% 800VDC RAD. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage rating - dc 800V, package / case Radial.
In Stock: 6,683
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 50 µF |
| Tolerance | ±5% |
| Voltage Rating - AC | - |
| Voltage Rating - DC | 800V |
| Dielectric Material | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | 3 mOhms |
| Operating Temperature | -55°C ~ 105°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 1.634" L x 1.378" W (41.50mm x 35.00mm) |
| Height - Seated (Max) | 1.969" (50.00mm) |
| Termination | PC Pins |
| Lead Spacing | 1.476" (37.50mm) |
| Applications | Automotive; DC Link, DC Filtering |
| Ratings | AEC-Q200 |
| Features | - |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| DCP4L055007JD4KSSD | WIMA | CAP FILM 50UF 10% 800VDC RAD | 100% | View |
| MKP1848C65080JY5 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 50UF 5% 800VDC RADIAL | 100% | View |
| MKP1848C65060JP5 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 50UF 5% 600VDC RADIAL | 95% | View |
| MKP1848C65060JY5 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 50UF 5% 600VDC RADIAL | 95% | View |
| DCP4I055007JD4KSSD | WIMA | CAP FILM 50UF 10% 600VDC RAD | 95% | View |
| MKP1848C65050JY4 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 50UF 5% 500VDC RADIAL | 92% | View |
