PC JACK - NON-INSULATED

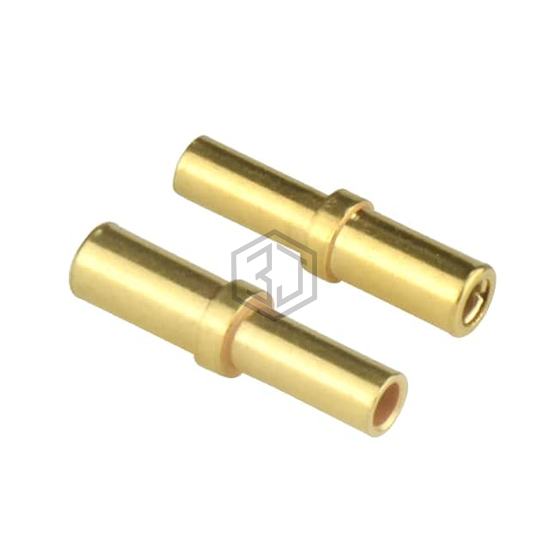

09-9070-1-03 is a Terminals - PC Pin Receptacles, Socket Connectors manufactured by Concord Electronics. PC JACK - NON-INSULATED. Key specifications: contact material Beryllium Copper, termination Swage.
In Stock: 100
| Attribute | Value |
|---|---|
| Product Status | Discontinued at Digi-Key |
| Tail Type | No Tail |
| Termination | Swage |
| Length - Overall | 0.530" (13.46mm) |
| Accepts Pin Diameter | 0.060" ~ 0.062" (1.52mm ~ 1.57mm) |
| Accepts Square Pin Size | - |
| Pin Hole Diameter | - |
| Mounting Hole Diameter | - |
| Flange Diameter | 0.141" (3.58mm) |
| Tail Diameter | - |
| Socket Depth | 0.190" (4.83mm) |
| Contact Material | Beryllium Copper |
| Contact Finish | Gold |
| Contact Finish Thickness | 30.0µin (0.76µm) |
Submit your RFQ for 09-9070-1-03 and get a quote within 24 hours.
