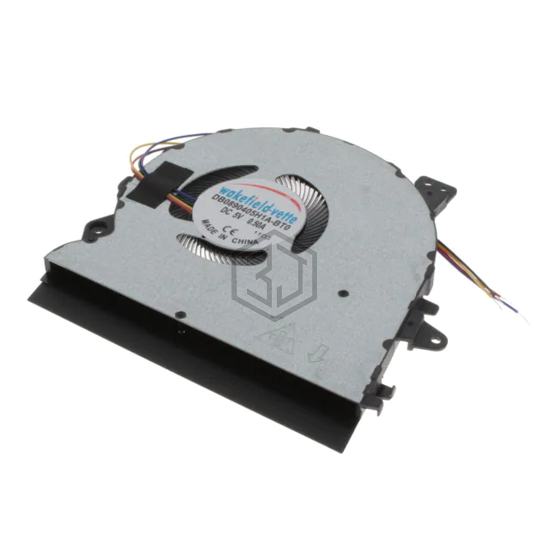

ULTRA THIN DC BLOWER 89.1X83.8X4
DB0890405H1A-BT0 is a DC Brushless Fans (BLDC) manufactured by Wakefield-Vette. ULTRA THIN DC BLOWER 89.1X83.8X4. Key specifications: operating temperature 14 ~ 158°F (-10 ~ 70°C), voltage - rated 5VDC, size / dimension Rectangular/Rounded - 89.1mm L x 83.8mm H, termination 4 Position Rectangular Connector.
In Stock: 49
| Attribute | Value |
|---|---|
| Product Status | Active |
| Voltage - Rated | 5VDC |
| Size / Dimension | Rectangular/Rounded - 89.1mm L x 83.8mm H |
| Width | 4.70mm |
| Air Flow | 3.9 CFM (0.109m³/min) |
| Static Pressure | 0.448 in H2O (111.6 Pa) |
| Bearing Type | Ball |
| Fan Type | Blower |
| Features | PWM Control, Speed Sensor (Tach) |
| Noise | 38.5dB(A) |
| Power (Watts) | 1.5 W |
| RPM | 3400 RPM |
| Termination | 4 Position Rectangular Connector |
| Ingress Protection | IP55 - Dust Protected, Water Resistant |
| Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Approval Agency | - |
| Weight | 0.085 lb (38.56 g) |
