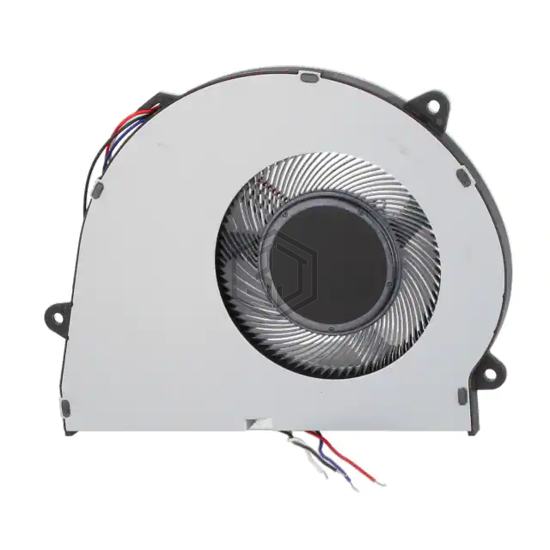

ULTRA THIN DC BLOWER 87X74.5X5.5
DB0870605H1A-BT0 is a DC Brushless Fans (BLDC) manufactured by Wakefield-Vette. ULTRA THIN DC BLOWER 87X74.5X5.5. Key specifications: operating temperature 14 ~ 158°F (-10 ~ 70°C), voltage - rated 5VDC, size / dimension Rectangular/Rounded - 74.5mm L x 90mm H, termination 4 Wire Leads.
In Stock: 5,157
| Attribute | Value |
|---|---|
| Product Status | Active |
| Voltage - Rated | 5VDC |
| Size / Dimension | Rectangular/Rounded - 74.5mm L x 90mm H |
| Width | 5.52mm |
| Air Flow | 5.7 CFM (0.160m³/min) |
| Static Pressure | 0.624 in H2O (155.4 Pa) |
| Bearing Type | Ball |
| Fan Type | Blower |
| Features | PWM Control, Speed Sensor (Tach) |
| Noise | 41.9dB(A) |
| Power (Watts) | 2.5 W |
| RPM | 4600 RPM |
| Termination | 4 Wire Leads |
| Ingress Protection | IP55 - Dust Protected, Water Resistant |
| Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Approval Agency | - |
| Weight | 0.102 lb (46.27 g) |
Submit your RFQ for DB0870605H1A-BT0 and get a quote within 24 hours.
