ULTRA THIN DC BLOWER 87X74.5X5MM

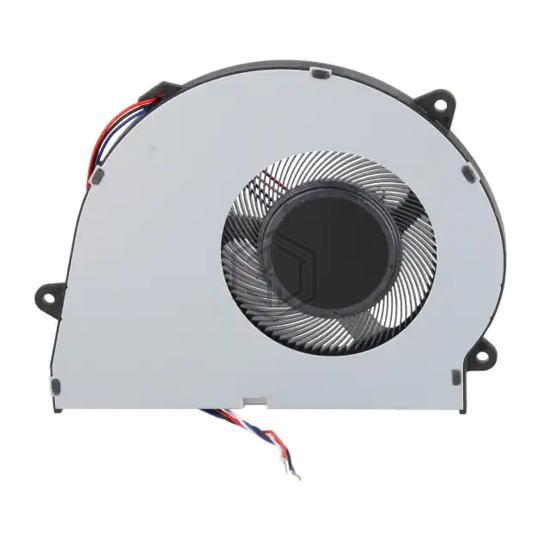

DB0870505H1A-BT0 is a DC Brushless Fans (BLDC) manufactured by Wakefield-Vette. ULTRA THIN DC BLOWER 87X74.5X5MM. Key specifications: operating temperature 14 ~ 158°F (-10 ~ 70°C), voltage - rated 5VDC, size / dimension Rectangular/Rounded - 74.5mm L x 90mm H, termination 4 Position Rectangular Connector.
In Stock: 52
| Attribute | Value |
|---|---|
| Product Status | Active |
| Voltage - Rated | 5VDC |
| Size / Dimension | Rectangular/Rounded - 74.5mm L x 90mm H |
| Width | 5.00mm |
| Air Flow | 4.6 CFM (0.129m³/min) |
| Static Pressure | 0.571 in H2O (142.2 Pa) |
| Bearing Type | Ball |
| Fan Type | Blower |
| Features | PWM Control, Speed Sensor (Tach) |
| Noise | 40.9dB(A) |
| Power (Watts) | 2.25 W |
| RPM | 4500 RPM |
| Termination | 4 Position Rectangular Connector |
| Ingress Protection | IP55 - Dust Protected, Water Resistant |
| Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Approval Agency | - |
| Weight | 0.091 lb (41.28 g) |
Submit your RFQ for DB0870505H1A-BT0 and get a quote within 24 hours.
