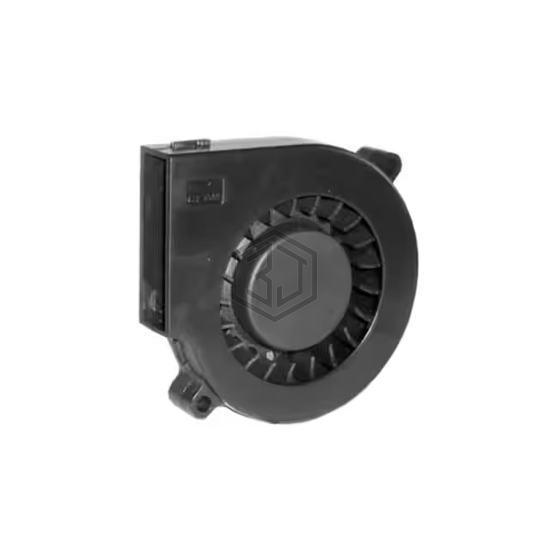

DC BLOWER 75X77X15MM 12V 7.4CFM
DB0751512L2B is a DC Brushless Fans (BLDC) manufactured by Wakefield-Vette. DC BLOWER 75X77X15MM 12V 7.4CFM. Key specifications: operating temperature 14 ~ 158°F (-10 ~ 70°C), voltage - rated 12VDC, size / dimension Rectangular/Rounded - 77mm L x 75mm H, termination 4 Wire Leads.
In Stock: 6,156
| Attribute | Value |
|---|---|
| Product Status | Active |
| Voltage - Rated | 12VDC |
| Size / Dimension | Rectangular/Rounded - 77mm L x 75mm H |
| Width | 15.50mm |
| Air Flow | 7.4 CFM (0.207m³/min) |
| Static Pressure | 0.240 in H2O (59.8 Pa) |
| Bearing Type | Ball |
| Fan Type | Blower |
| Features | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) |
| Noise | 43.0dB(A) |
| Power (Watts) | 2.52 W |
| RPM | 4000 RPM |
| Termination | 4 Wire Leads |
| Ingress Protection | IP55 - Dust Protected, Water Resistant |
| Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Approval Agency | CE |
| Weight | - |
