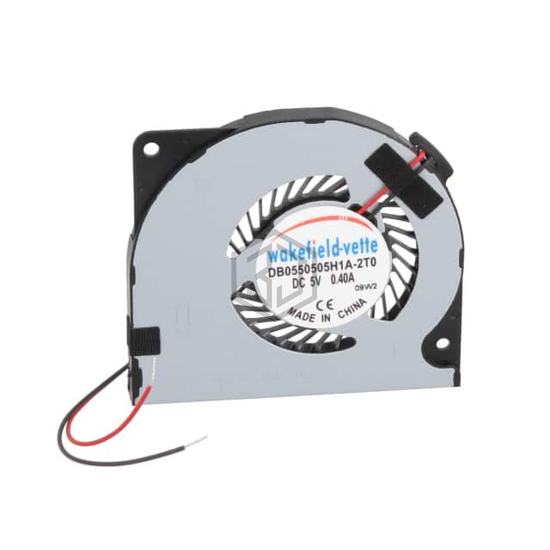

ULTRA THIN DC BLOWER 55X55X5.25M
DB0550505H1A-2T0 is a DC Brushless Fans (BLDC) manufactured by Wakefield-Vette. ULTRA THIN DC BLOWER 55X55X5.25M. Key specifications: operating temperature 14 ~ 158°F (-10 ~ 70°C), voltage - rated 5VDC, size / dimension Rectangular/Rounded - 49.5mm L x 37.5mm H, termination 2 Position Rectangular Connector.
In Stock: 534
| Attribute | Value |
|---|---|
| Product Status | Active |
| Voltage - Rated | 5VDC |
| Size / Dimension | Rectangular/Rounded - 49.5mm L x 37.5mm H |
| Width | 5.25mm |
| Air Flow | 1.3 CFM (0.036m³/min) |
| Static Pressure | 0.149 in H2O (37.1 Pa) |
| Bearing Type | Ball |
| Fan Type | Blower |
| Features | - |
| Noise | 21.2dB(A) |
| Power (Watts) | 700 mW |
| RPM | 3100 RPM |
| Termination | 2 Position Rectangular Connector |
| Ingress Protection | IP55 - Dust Protected, Water Resistant |
| Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Approval Agency | - |
| Weight | 0.038 lb (17.24 g) |
