SWITCHED-MODE POWER SUPPLY; CLAS

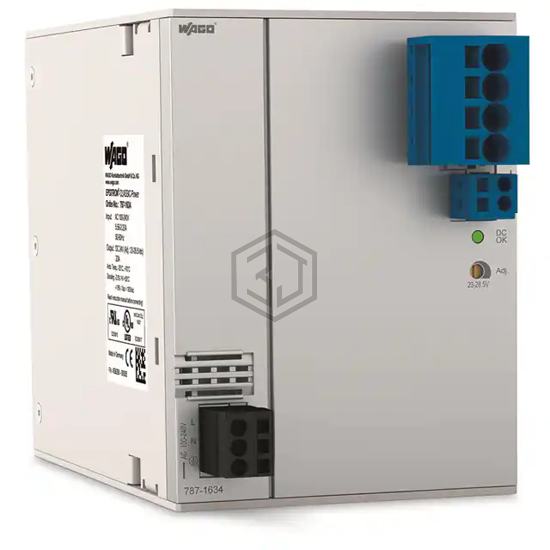

787-1634/000-070 is a Industrial, DIN Rail Power Supplies manufactured by WAGO Corporation. SWITCHED-MODE POWER SUPPLY; CLAS. Key specifications: operating temperature -25°C ~ 70°C, current - output (max) 20A, size / dimension 6.69" L x 3.74" W x 5.00" H (170.0mm x 95.0mm x 127.0mm), number of outputs 1.
In Stock: 10
| Attribute | Value |
|---|---|
| Product Status | Active |
| Input Type | AC or DC |
| Number of Outputs | 1 |
| AC Voltage - Input | 85 ~ 264 VAC |
| DC Voltage - Input (Min) | 120V |
| DC Voltage - Input (Max) | 300V |
| Voltage - Output 1 | 24V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output (Max) | 20A |
| Power (Watts) | 480W |
| Voltage - Isolation | 4.242 kV |
| Applications | Industrial, ITE (Commercial), Laboratory |
| Efficiency | 92% |
| Operating Temperature | -25°C ~ 70°C |
| Features | Adjustable Output, IP20, PFC, Universal Input |
| Size / Dimension | 6.69" L x 3.74" W x 5.00" H (170.0mm x 95.0mm x 127.0mm) |
| Approval Agency | CE, EAC |
| Standard Number | 60950-1; 61010-1; UL 508 |
Submit your RFQ for 787-1634/000-070 and get a quote within 24 hours.
