SWITCHED-MODE POWER SUPPLY; COMP

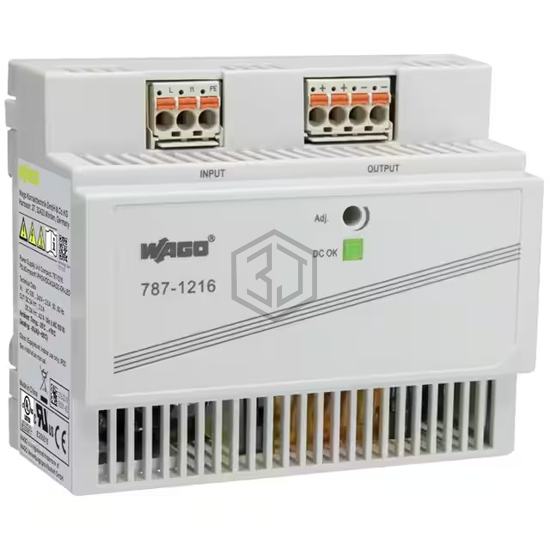

787-1216 is a Industrial, DIN Rail Power Supplies manufactured by WAGO Corporation. SWITCHED-MODE POWER SUPPLY; COMP. Key specifications: operating temperature -25°C ~ 70°C, current - output (max) 4.2A, size / dimension 2.07" L x 4.25" W x 3.54" H (52.5mm x 108.0mm x 90.0mm), number of outputs 1.
In Stock: 4,060
| Attribute | Value |
|---|---|
| Product Status | Active |
| Input Type | AC or DC |
| Number of Outputs | 1 |
| AC Voltage - Input | 85 ~ 264 VAC |
| DC Voltage - Input (Min) | 125V |
| DC Voltage - Input (Max) | 375V |
| Voltage - Output 1 | 24V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output (Max) | 4.2A |
| Power (Watts) | 100W |
| Voltage - Isolation | 4.242 kV |
| Applications | Household Appliances, Industrial, ITE (Commercial) |
| Efficiency | 90% |
| Operating Temperature | -25°C ~ 70°C |
| Features | Adjustable Output, IP20, PFC, Universal Input |
| Size / Dimension | 2.07" L x 4.25" W x 3.54" H (52.5mm x 108.0mm x 90.0mm) |
| Approval Agency | cURus, EAC, UL |
| Standard Number | 60335-1; 60950-1; 62368-1; UL 508 |
Submit your RFQ for 787-1216 and get a quote within 24 hours.
