SNAP-IN SOCKET WITH PROTRUDING M

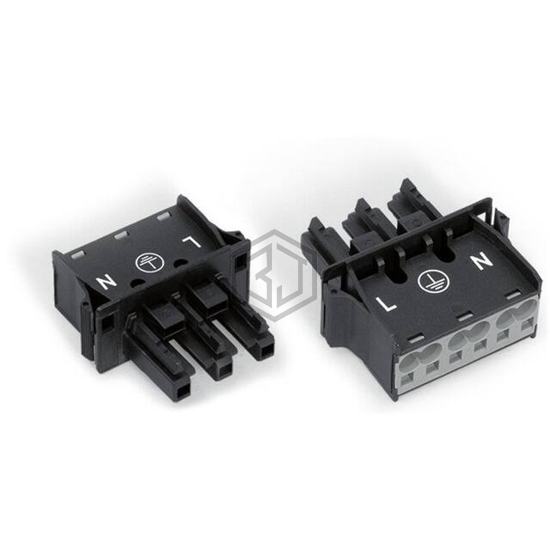

770-703/009-000 is a Terminal Blocks - Headers, Plugs and Sockets manufactured by WAGO Corporation. SNAP-IN SOCKET WITH PROTRUDING M. Key specifications: mounting type Panel Mount, Snap-In, operating temperature -35°C ~ 85°C, color Black, termination style Screwless - Push-In Spring.
In Stock: 5,232
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Plug, Female Sockets |
| Number of Positions | 3 |
| Positions Per Level | 3 |
| Number of Levels | 1 |
| Pitch | 0.394" (10.00mm) |
| Header Orientation | - |
| Plug Wire Entry | 180° |
| Termination Style | Screwless - Push-In Spring |
| Mounting Type | Panel Mount, Snap-In |
| Current - IEC | 25A |
| Voltage - IEC | 250 V |
| Current - UL | 23 A |
| Voltage - UL | 600 V |
| Wire Gauge or Range - AWG | 12-20 AWG |
| Wire Gauge or Range - mm² | 0.5-4mm² |
| Color | Black |
| Operating Temperature | -35°C ~ 85°C |
| Contact Mating Finish | - |
| Features | Lever Actuated |
Submit your RFQ for 770-703/009-000 and get a quote within 24 hours.
