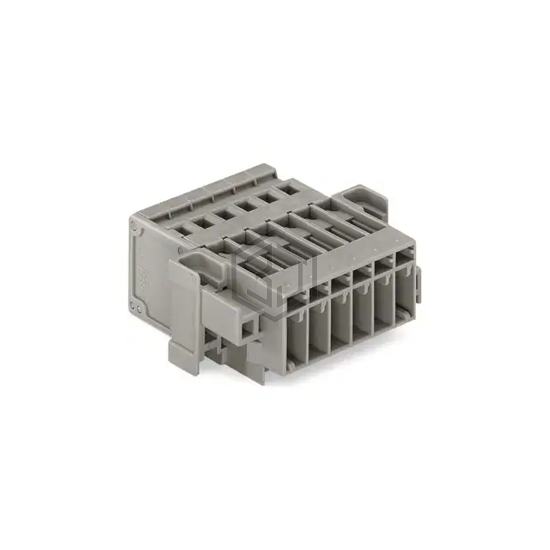

1-CONDUCTOR MALE CONNECTOR; FEED
769-608/004-000 is a Terminal Blocks - Headers, Plugs and Sockets manufactured by WAGO Corporation. 1-CONDUCTOR MALE CONNECTOR; FEED. Key specifications: mounting type Free Hanging (In-Line), color Gray, termination style Screwless - Push-In Spring, number of positions 8.
In Stock: 6,032
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Plug, Male Pins |
| Number of Positions | 8 |
| Positions Per Level | 8 |
| Number of Levels | 1 |
| Pitch | 0.197" (5.00mm) |
| Header Orientation | - |
| Plug Wire Entry | 180° |
| Termination Style | Screwless - Push-In Spring |
| Mounting Type | Free Hanging (In-Line) |
| Current - IEC | 32A |
| Voltage - IEC | 500 V |
| Current - UL | - |
| Voltage - UL | - |
| Wire Gauge or Range - AWG | 12-28 AWG |
| Wire Gauge or Range - mm² | 0.08-4mm² |
| Color | Gray |
| Operating Temperature | - |
| Contact Mating Finish | - |
| Features | Mating Flange |
Submit your RFQ for 769-608/004-000 and get a quote within 24 hours.
