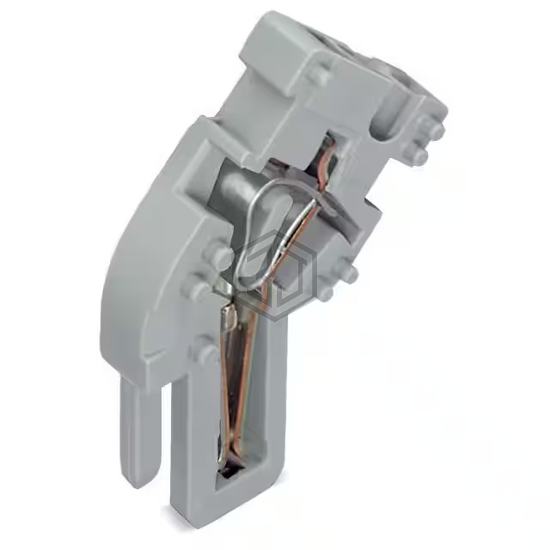

END MODULE FOR 1-CONDUCTOR FEMAL
769-515 is a Terminal Blocks - Headers, Plugs and Sockets manufactured by WAGO Corporation. END MODULE FOR 1-CONDUCTOR FEMAL. Key specifications: mounting type Free Hanging (In-Line), color Green, Yellow, termination style Screwless - Spring Cage, Tension Clamp, number of positions 1.
In Stock: 4,965
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Plug, Female Sockets |
| Number of Positions | 1 |
| Positions Per Level | 1 |
| Number of Levels | 1 |
| Pitch | 0.197" (5.00mm) |
| Header Orientation | - |
| Plug Wire Entry | 225° |
| Termination Style | Screwless - Spring Cage, Tension Clamp |
| Mounting Type | Free Hanging (In-Line) |
| Current - IEC | 32A |
| Voltage - IEC | 500 V |
| Current - UL | - |
| Voltage - UL | - |
| Wire Gauge or Range - AWG | 12-28 AWG |
| Wire Gauge or Range - mm² | 0.08-4mm² |
| Color | Green, Yellow |
| Operating Temperature | - |
| Contact Mating Finish | - |
| Features | Retention Latches (Non-Wire Side) |
