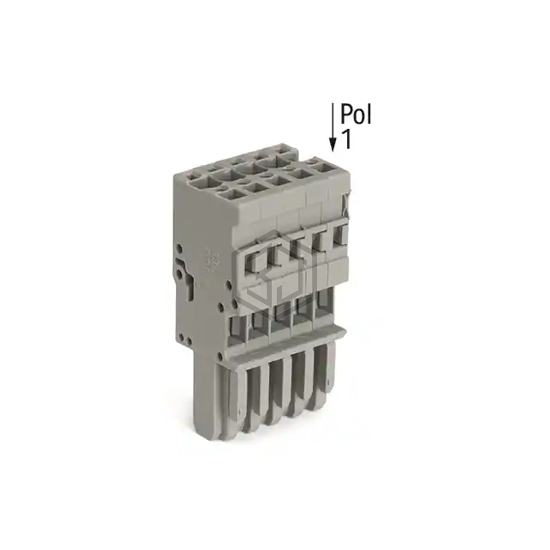

1-CONDUCTOR FEMALE PLUG; 4 MM; 5
769-105 is a Terminal Blocks - Headers, Plugs and Sockets manufactured by WAGO Corporation. 1-CONDUCTOR FEMALE PLUG; 4 MM; 5. Key specifications: mounting type Free Hanging (In-Line), color Gray, termination style Screwless - Push-In Spring, number of positions 5.
In Stock: 246
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Plug, Female Sockets |
| Number of Positions | 5 |
| Positions Per Level | 5 |
| Number of Levels | 1 (Mate), 2 (Input) |
| Pitch | 0.197" (5.00mm) |
| Header Orientation | - |
| Plug Wire Entry | 180° |
| Termination Style | Screwless - Push-In Spring |
| Mounting Type | Free Hanging (In-Line) |
| Current - IEC | 32A |
| Voltage - IEC | 500 V |
| Current - UL | - |
| Voltage - UL | - |
| Wire Gauge or Range - AWG | 12-28 AWG |
| Wire Gauge or Range - mm² | 0.08-4mm² |
| Color | Gray |
| Operating Temperature | - |
| Contact Mating Finish | - |
| Features | Retention Latches (Non-Wire Side) |
