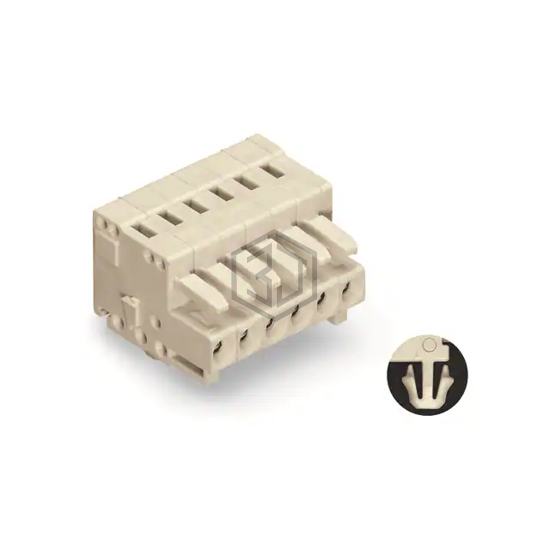

1-CONDUCTOR FEMALE PLUG; 100% PR
734-124/008-000 is a Terminal Blocks - Headers, Plugs and Sockets manufactured by WAGO Corporation. 1-CONDUCTOR FEMALE PLUG; 100% PR. Key specifications: mounting type Panel Mount, operating temperature -60°C ~ 100°C, color Gray, termination style Screwless - Push-In Spring.
In Stock: 8,428
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Plug, Female Sockets |
| Number of Positions | 24 |
| Positions Per Level | 24 |
| Number of Levels | 1 |
| Pitch | 0.138" (3.50mm) |
| Header Orientation | - |
| Plug Wire Entry | 180° |
| Termination Style | Screwless - Push-In Spring |
| Mounting Type | Panel Mount |
| Current - IEC | 10A |
| Voltage - IEC | 320 V |
| Current - UL | 10 A |
| Voltage - UL | 300 V |
| Wire Gauge or Range - AWG | 14-28 AWG |
| Wire Gauge or Range - mm² | 0.08-1.5mm² |
| Color | Gray |
| Operating Temperature | -60°C ~ 100°C |
| Contact Mating Finish | Tin |
| Features | Board Lock, Retention Latches (Non-Wire Side) |
