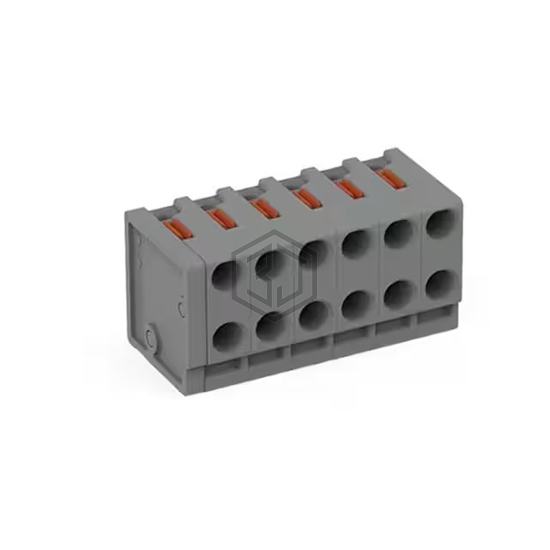

2-CONDUCTOR MODULAR PCB CONNECTO
252-306 is a Terminal Blocks - Headers, Plugs and Sockets manufactured by WAGO Corporation. 2-CONDUCTOR MODULAR PCB CONNECTO. Key specifications: mounting type Free Hanging (In-Line), operating temperature -60°C ~ 105°C, color Gray, termination style Screwless - Push-In Spring.
In Stock: 6,978
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Plug, Female Sockets |
| Number of Positions | 12 |
| Positions Per Level | 6 |
| Number of Levels | 2 |
| Pitch | 0.138" (3.50mm) |
| Header Orientation | - |
| Plug Wire Entry | 180° |
| Termination Style | Screwless - Push-In Spring |
| Mounting Type | Free Hanging (In-Line) |
| Current - IEC | 2A |
| Voltage - IEC | 320 V |
| Current - UL | 2 A |
| Voltage - UL | 300 V |
| Wire Gauge or Range - AWG | 20-26 AWG |
| Wire Gauge or Range - mm² | 0.14-0.5mm² |
| Color | Gray |
| Operating Temperature | -60°C ~ 105°C |
| Contact Mating Finish | Tin |
| Features | Push Button Actuated |
Submit your RFQ for 252-306 and get a quote within 24 hours.
