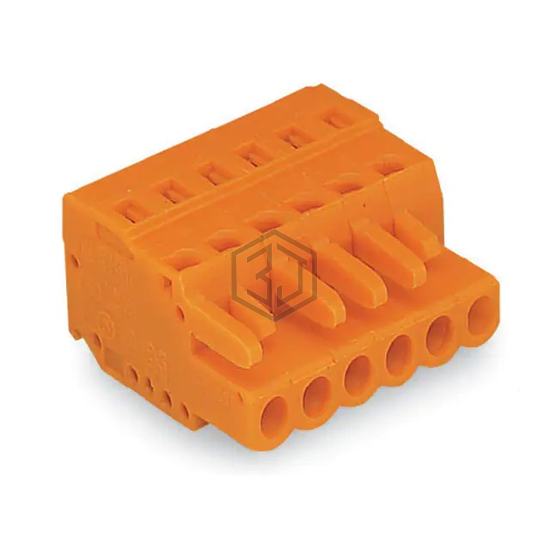

1-CONDUCTOR FEMALE PLUG 5.08MM
231-312/026-000 is a Terminal Blocks - Headers, Plugs and Sockets manufactured by WAGO Corporation. 1-CONDUCTOR FEMALE PLUG 5.08MM. Key specifications: mounting type Free Hanging (In-Line), operating temperature -60°C ~ 85°C, color Orange, termination style Screwless - Push-In Spring.
In Stock: 311
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Plug, Female Sockets |
| Number of Positions | 12 |
| Positions Per Level | 12 |
| Number of Levels | 1 |
| Pitch | 0.200" (5.08mm) |
| Header Orientation | - |
| Plug Wire Entry | 180° |
| Termination Style | Screwless - Push-In Spring |
| Mounting Type | Free Hanging (In-Line) |
| Current - IEC | 16A |
| Voltage - IEC | 630 V |
| Current - UL | 15 A |
| Voltage - UL | 600 V |
| Wire Gauge or Range - AWG | 12-28 AWG |
| Wire Gauge or Range - mm² | 0.08-2.5mm² |
| Color | Orange |
| Operating Temperature | -60°C ~ 85°C |
| Contact Mating Finish | Tin |
| Features | Retention Latches (Non-Wire Side) |
Submit your RFQ for 231-312/026-000 and get a quote within 24 hours.
