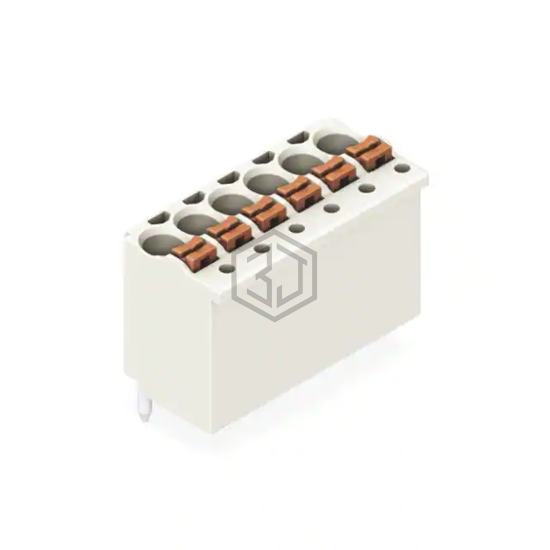

1-CONDUCTOR THR FEMALE HEADER; 1
2091-1178/200-000 is a Terminal Blocks - Headers, Plugs and Sockets manufactured by WAGO Corporation. 1-CONDUCTOR THR FEMALE HEADER; 1. Key specifications: mounting type Through Hole, operating temperature -60°C ~ 100°C, color Gray, termination style Solder.
In Stock: 6,998
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Header, Female Sockets |
| Number of Positions | 8 |
| Positions Per Level | 8 |
| Number of Levels | 1 |
| Pitch | 0.138" (3.50mm) |
| Header Orientation | Vertical |
| Plug Wire Entry | - |
| Termination Style | Solder |
| Mounting Type | Through Hole |
| Current - IEC | 10A |
| Voltage - IEC | 320 V |
| Current - UL | 10 A |
| Voltage - UL | 300 V |
| Wire Gauge or Range - AWG | 14-24 AWG |
| Wire Gauge or Range - mm² | 0.2-1.5mm² |
| Color | Gray |
| Operating Temperature | -60°C ~ 100°C |
| Contact Mating Finish | Tin |
| Features | Push Button Actuated |
Submit your RFQ for 2091-1178/200-000 and get a quote within 24 hours.
