2-CONDUCTOR FEMALE CONNECTOR; 1.

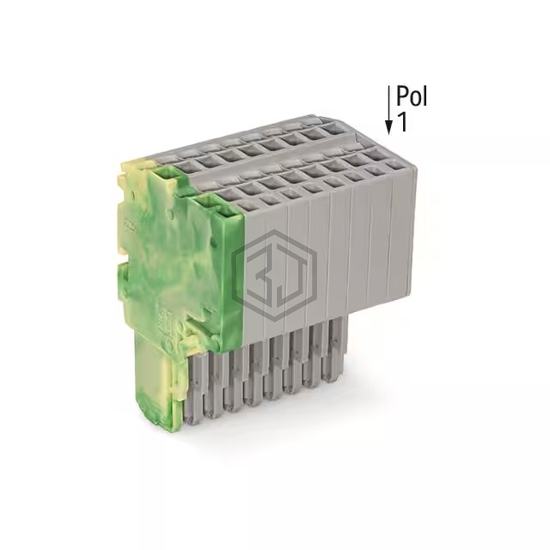

2020-210/000-037 is a Terminal Blocks - Headers, Plugs and Sockets manufactured by WAGO Corporation. 2-CONDUCTOR FEMALE CONNECTOR; 1.. Key specifications: mounting type Free Hanging (In-Line), color Gray, Green, Yellow, termination style Screwless - Push-In Spring, number of positions 10 (Mate), 20 (Input).
In Stock: 1,996
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Plug, Female Sockets |
| Number of Positions | 10 (Mate), 20 (Input) |
| Positions Per Level | 10 (Mate), 20 (Input) |
| Number of Levels | 1 (Mate), 2 (Input) |
| Pitch | 0.138" (3.50mm) |
| Header Orientation | - |
| Plug Wire Entry | 180° |
| Termination Style | Screwless - Push-In Spring |
| Mounting Type | Free Hanging (In-Line) |
| Current - IEC | 13.5A |
| Voltage - IEC | 500 V |
| Current - UL | 15 A |
| Voltage - UL | 300 V |
| Wire Gauge or Range - AWG | 16-24 AWG |
| Wire Gauge or Range - mm² | 0.14-1.5mm² |
| Color | Gray, Green, Yellow |
| Operating Temperature | - |
| Contact Mating Finish | - |
| Features | - |
Submit your RFQ for 2020-210/000-037 and get a quote within 24 hours.
